2.5x6x1.5 Double Acting Hydraulic Cylinder Wolverine by Prince Mfg WWSB2506-S

Item Number: 9-12231-6

Price: $172.15
TOP
Back to top

2.5x6x1.5 Double Acting Hydraulic Cylinder Wolverine by Prince Mfg WWSB2506-S

2.5x6x1.5 Double Acting Hydraulic Cylinder Wolverine by Prince Mfg WWSB2506-S

item number: 9-12231-6 PRICE: $172.15 12 In Stock Regular Stock Item



Available for in store pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 9-12231-6
2.5x6x1.5 Double Acting Hydraulic Cylinder Wolverine by Prince Mfg WWSB2506-S
Item Number: 9-12231-6
Price: $172.15
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 57 of our current catalog
Description

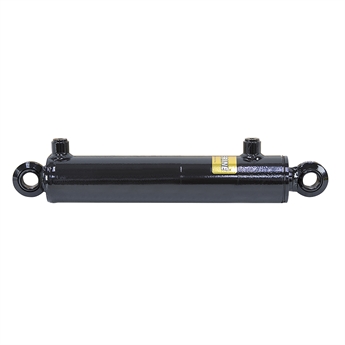

2.5" x 6" x 1.5" DA HYD CYL
Brand new WOLVERINE by PRINCE double acting cylinder with swivel eyes. Heavy duty welded construction with threaded-in gland design. Top port design with SAE O-ring ports for reliable and leak free connection. Spherical ball end swivel eye amount on both ends to allow for angular misallignment.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2.5" x 6"
  • Barrel Thickness 0.25"
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 1.5"
  • Column Load 3000 PSI max. @ full extension
  • Ports SAE 8
  • Retracted Length 13.5"
  • Shpg. 17 lbs.
END MOUNTINGS
  • Rod End Swivel-Ball
  • Ball Width 0.97"
  • Ball O.D. 2.25"
  • Pin Hole 1"
  • Base End Swivel-Ball
  • Ball Width 0.97"
  • Ball O.D. 2.25"
  • Pin Hole 1"
