Description

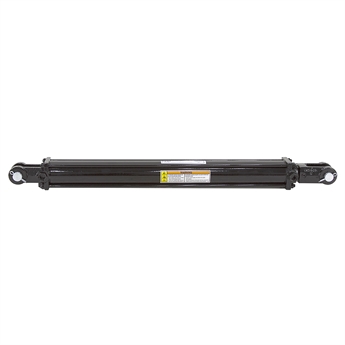

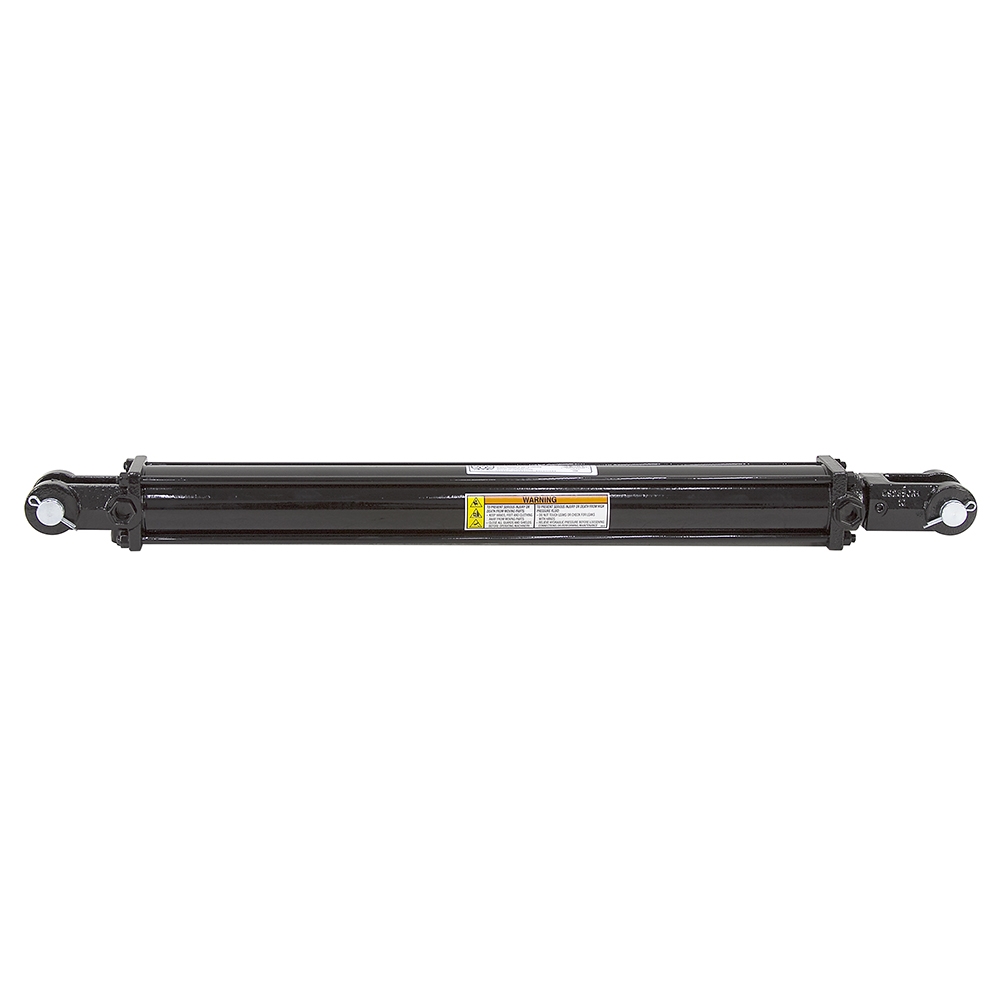

3.5" x 6" x 1.25" DA HYDRAULIC CYLINDER
New, LYNX model# 35LH06-125 tie-rod cylinder. Inline ports.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3-1/2" x 6"
  • Barrel Thickness 3/16"
  • Pressure 3000 PSI max.
  • Rod Dia. 1-1/4"
  • Ports SAE 8
  • Retracted Length 16-1/4"
  • Shpg. 32 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 2-5/8"
  • Inside Width 1-1/8"
  • Throat Depth 2-1/8"
  • Pin Hole 1"
  • Base End Clevis
  • Outside Width 2-9/16"
  • Inside Width 1-1/8"
  • Throat Depth 2-1/16"
  • Pin Hole 1"
