4x14x2.25 DA Hydraulic Cylinder Heavy Duty Crosstube

4x14x2.25 DA Hydraulic Cylinder Heavy Duty Crosstube

item number: 9-7714-14 PRICE: $335.95 Out of Stock - No Longer Available
Calculate Shipping for Item 9-7714-14
4x14x2.25 DA Hydraulic Cylinder Heavy Duty Crosstube
Item Number: 9-7714-14
Price: $335.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description

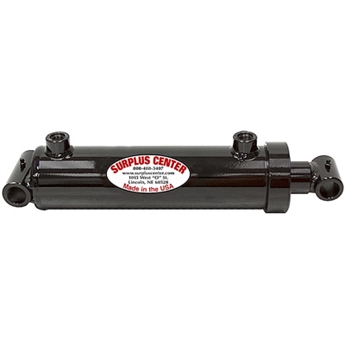

4" BORE WELDED DOUBLE ACTING CYLINDER W/CROSSTUBE ENDS
Brand new, Surplus Center private label cylinder. External gland for superior performance at high pressure. Crosstubes at both ends. Excellent for many heavy duty mobile applications. Made in USA.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4" x 14"
  • Pressure 3500 PSI max.
  • Rod Dia. 2-1/4"
  • Ports SAE 8
  • Retracted Length 25"
  • Shpg. 66 lbs.
END MOUNTINGS
  • Rod End Crosstube
  • Width 4"
  • Pin Hole 1-1/4"
  • Base End Crosstube
  • Width 4-3/4"
  • Pin Hole 1-1/4"
More Specs

MORE INFO

Click to view...

Instructions
Click on boxes below for more information about this product.
Dimensional DiagramMore Specs
Ask A Question

Showing Questions of 1

Is this cylinder available with 2 1/2" rod diameter? or will a 2 1/4'" diameter rod be sufficient for strenghth when extended. or with a stainless rod if that's stronger? Thank you chas 907-444-6777

A: We only have this cylinder available as described. This rod size is capable of pushing at the full rated pressure, with no de-rating for column load necessary. Extension ratings are critically dependent on there being no side load applied to the rod at any point in the stroke. Force transmitted should be axial through the length of the rod.
