Description

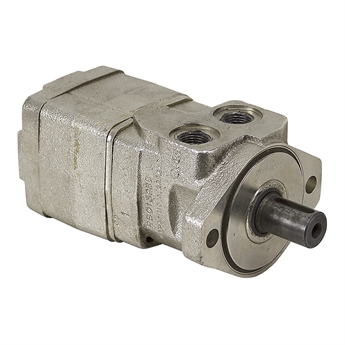

24.9 cu in WHITE DRIVE PRODUCTS 200400A1010ZAAN HYDRAULIC MOTOR
New, WHITE DRIVE PRODUCTS hydraulic motor. Nickel-plated for enhanced corrosion resistance. Heavy-duty bearings. Suited for low flow, high pressure applications. Features include a heavy-duty drive link, pressure-compensated balance plate, and valve-in-rotor design for increased performance and longevity.

SPECIFICATIONS
  • Brand White Drive Products
  • Model 200400A1010ZAAN
  • Family RS
  • Disp. 24.9 cu. in. / rev.
  • Motor Type Roller Stator
  • Rotation Reversible
  • Pressure:
       1000 PSI cont.
       1250 PSI int.
  • Torque:
       3350 in-lbs. cont.
       4100 in-lbs. int.
  • Speed:
       190 RPM cont.
       220 RPM int.
  • Flow:
       20 GPM cont.
       24 GPM int.
  • Mount Two-bolt SAE A
  • Shaft 1" dia. x 1-3/4" long w/ 1/4" key
  • Ports 1/2" NPT
  • Case Drain None
  • Size 7-3/8" x 5-1/8" x 4"
  • Shpg. 25 lbs.
