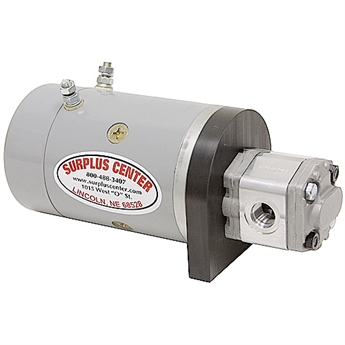

12 Volt DC 1.4 GPM 2500 PSI Hydraulic Pump Unit

Item Number: 9-7313

Price: $199.95
TOP
Back to top

12 Volt DC 1.4 GPM 2500 PSI Hydraulic Pump Unit

12 Volt DC 1.4 GPM 2500 PSI Hydraulic Pump Unit

item number: 9-7313 PRICE: $199.95 Out of Stock - No Longer Available
Calculate Shipping for Item 9-7313
12 Volt DC 1.4 GPM 2500 PSI Hydraulic Pump Unit
Item Number: 9-7313
Price: $199.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.

You may also consider:

Description
12 VDC POWER UNIT
Brand new, compact 12 VDC hydraulic pump unit. Ideal pump source for building hydraulic power pack systems for lifts and hoists, emergency hydraulic source for mobile equipment and other DC applications.

SPECIFICATIONS
  • 12 VDC
  • 2 GPM @ 500 PSI @ 80 Amps
  • 1.4 GPM @ 2,000 PSI @ 200 Amps
  • Disp. 0.09 cu. in. / rev.
  • 2,500 PSI maximum
  • No relief valve
  • IN port SAE 8
  • OUT port SAE 6
  • Duty int. 1 min. ON/5 min. OFF
  • Size 11-1/4" x 5-1/2" x 4-1/2"
  • Shpg. 23 lbs.
More Specs


Click on boxes below for more information about this product.
Wiring DiagramMore Specs
Ask A Question

Showing Questions of 6

Can this item be used as a continous duty pump assembly as I'm going to try to use this with a drive project I'm working on

A: No, this item is not rated for continuous duty. At full pressure the duty cycle is one minute on, 5 minutes off.

I want to know if you have a high torque low speed hydraulic motor that would be compatible with your hydraulic power unit (iteam #9-7313) . I know it wouldn't run at full capacity but iam building a hoist for a marine application to pull crab pots that weigh about 100 pounds each .

A: Any motor could be used for this but there are two possible problems. First the pump is very intermittant duty, a couple minutes at a time maximum. Second the flow rate is very low which unless you use a small displacement motor will give extremely low RPM and the small displacement motor may not have enough torque.

in this pump mount, can you index the motor to the left, to protect the power posts. thanks jp 9-7313

A: The motor has just 2 studs for the bracket so the connections have to be either up or down. The whole item could be mounted with the tapped holes on the side and the ports facing vertically.

Is the pump reversible to run a double acting cylinder?

A: The double acting part comes from the type of spool valve you use. That would have to be double acting.

Will this pump run on 24 volts?

A: No this is a true 12 volt motor.

I'm looking for 12v hydraulic pump that is 100% duty for steering set up

A: This pump is not designed to be run continuously. However it can be operated very frequently as the original application for the motor was on a snowplow where adjustments would be made often.
