Description

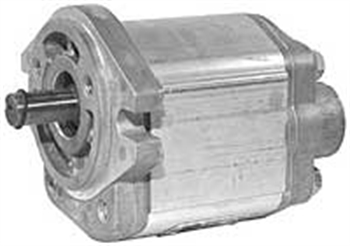

PRINCE GEAR PUMP

Brand new, Prince, special non-symetrical gears give higher efficiency than conventional pumps. Alumninum body. Ideal replacement for many brands on tractors, other implements.
SPECIFICATIONS
  • 1.403 cu in displ
  • 11.60 GPM at 2000 RPM
  • 2500 PSI
  • 3500 RPM max
  • IN SAE 16 rear
  • OUT SAE 12 rear
  • SAE A 2 bolt mount
  • CCW rotation
  • 5/8" dia x 1-1/4" keyed shaft
  • 5"x5-1/8"x4-5/8"
  • Shpg 9 lbs
Ask A Question

Showing Questions of 1

Will a 9 h.p. gas engine be big enough to power this pump. What is the formula ? Thank You in Advance for your attention to this matter.

A: That depends on the pressure you want to generate continuously. The formula for driving a hydraulic pump with an electric motor is: GPM x Pressure รท 1416 = HP. For driving with an industrial gas or diesel engine use 1100 as a divisor. For a general purpose gas engine use 900 as a divisor. Be aware of the RPM you want to drive the pump at, the GPM at that RPM, and the rated HP of the engine at that RPM.
