9.8 Gallon Hydraulic Reservoir Buyers Products SMR7S

Item Number: 9-7948

Price: $181.75
Back to top

9.8 Gallon Hydraulic Reservoir Buyers Products SMR7S

9.8 Gallon Hydraulic Reservoir Buyers Products SMR7S

item number: 9-7948 PRICE: $181.75 12 In Stock Regular Stock Item

Available for curbside pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 9-7948
9.8 Gallon Hydraulic Reservoir Buyers Products SMR7S
Item Number: 9-7948
Price: $181.75
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 86 of our current catalog

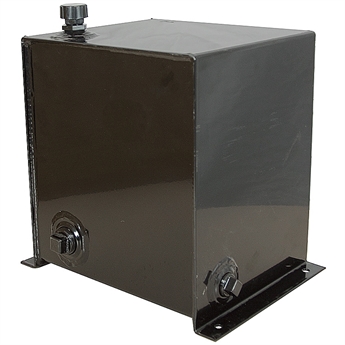

Brand new, BUYERS model SMR7S hydraulic reservoir. Constructed of 10 & 12 gauge black powder coated steel. Magnetic drain plug. All sides are ported, allowing multiple position mounting. Suction ports on opposing sides and bottom. Return ports on the other two sides and top. Whichever return port is at the top of the tank is intended to be used as the filler/breather port. Plastic breather cap included. Plastic 1" NPTM to 3/4" NPTF bushing for breather cap.

  • Nominal Oil Capacity 9.8 Gallon
  • Usable Oil Capacity 7 Gallon
  • Ports:

  •    Suction 1-1/4" NPT x three
       Return/Filler/Breather 1" NPT x three
       Drain 3/4" NPT x one
  • Mount
    Four bolt holes on 14-1/4" x 9-1/4" centers
  • Mounting Holes 7/16" diam.
  • Size 15-3/4" x 14-7/8" x 11-3/4"
  • Shpg. 43 lbs.
More Specs


Click to view...

Click on boxes below for more information about this product.
Dimensional DiagramMore Specs
Ask A Question
Submit a question for this product

Showing Questions of 4

i need to make a cooling unit and i 'll use this pump 1 HP Vertical SS Goulds 1SL4E01D3GE1R Pump. do you think this oil tank could work and the pump could fit in

A: No, the pump would not fit in the tank with enough clearance below the inlet to meet the manufacturer's stated 2" for this design.

What strainer should I use for the suction side using a 13gpm pump?

A: We have no strainers that are rated for that flow which will fit this tank. Ideally for that flow a larger reservoir would be required.

Hello, I recently bought this tank and mounted it on a trailer and I was wondering if the breather cap is really weatherproof because oil is coming out of it when I pull the trailer down the road (that shouldn't happen either). Would you recommend changing the cap for something more sturdy?

A: The breather cap supplied is a vented breather cap with a mesh screen inside. It is meant to prevent particulate intrusion as the oil level fluctuation causes air to be pushed out or sucked into the tank. It will not prevent the loss of oil if the oil level is too high and movement causes that oil to slosh up into the cap. I am not aware of any sturdier cap that would breathe properly and still prevent oil loss if that is the case. One could attach a short length of pipe or hose to extend the distance from the oil to the breather cap, as long as it didn't have any bends that could trap oil and prevent proper breathing.

Is tank baffled?

A: This tank has no baffle.
