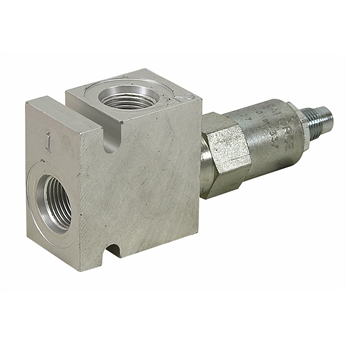

Hydraforce Relief Valve Cartridge Valve RV10-20A-8T-N-33

HYDRAFORCE RELIEF VALVE RV10-20A-8T-N-33

New, Hydraforce. A screw-in, cartridge-style, direct-acting, poppet-type, hydraulic relief valve intended for use as a pressure limiting device for common hydraulic circuit protection.
The RV10-20 blocks flow from 1 to 2 until sufficient pressure is present at 1 to force the spring-opposed poppet from its seat. This valve offers fast response to load changes in typical hydraulic circuits requiring low internal leakage.

SPECIFICATIONS

• Brand HydraForce
• Model RV10-20A-8T-N-33
• Type Relief, Direct Acting, Poppet Type
• Pressure Rating 3300 PSI max.
• Pressure Setting 2200 PSI, Adjustable
• Flow 10 GPM max.
• Fits into VC10-2 Cavity
• Features 1/4" Hex Allen head, SAE 8 Porting, Set @ 2200 PSI, Cartridge Only
• Overall Size 4-5/8" x 1-1/8" dia.
• Shpg. 1 lb.
