Fairfield W2M1FZADA37 Torque Hub

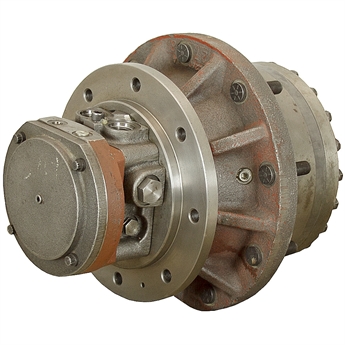

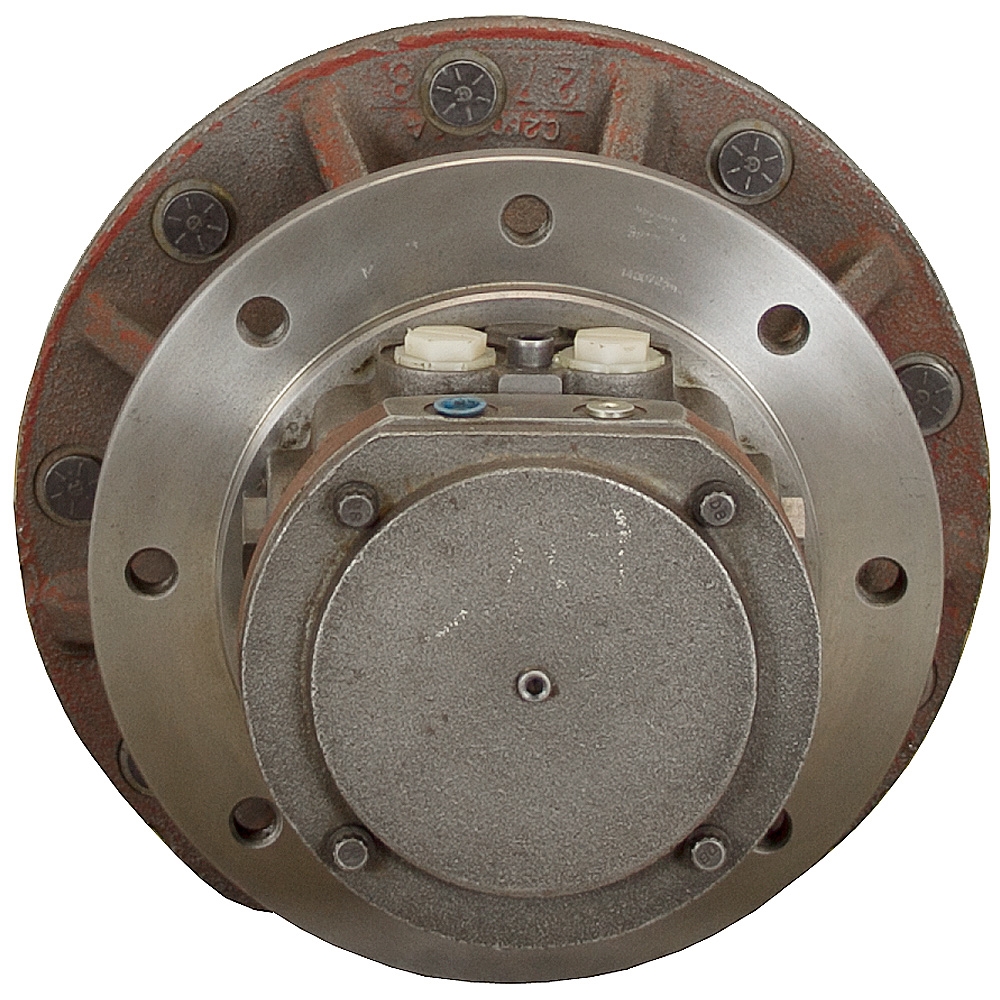

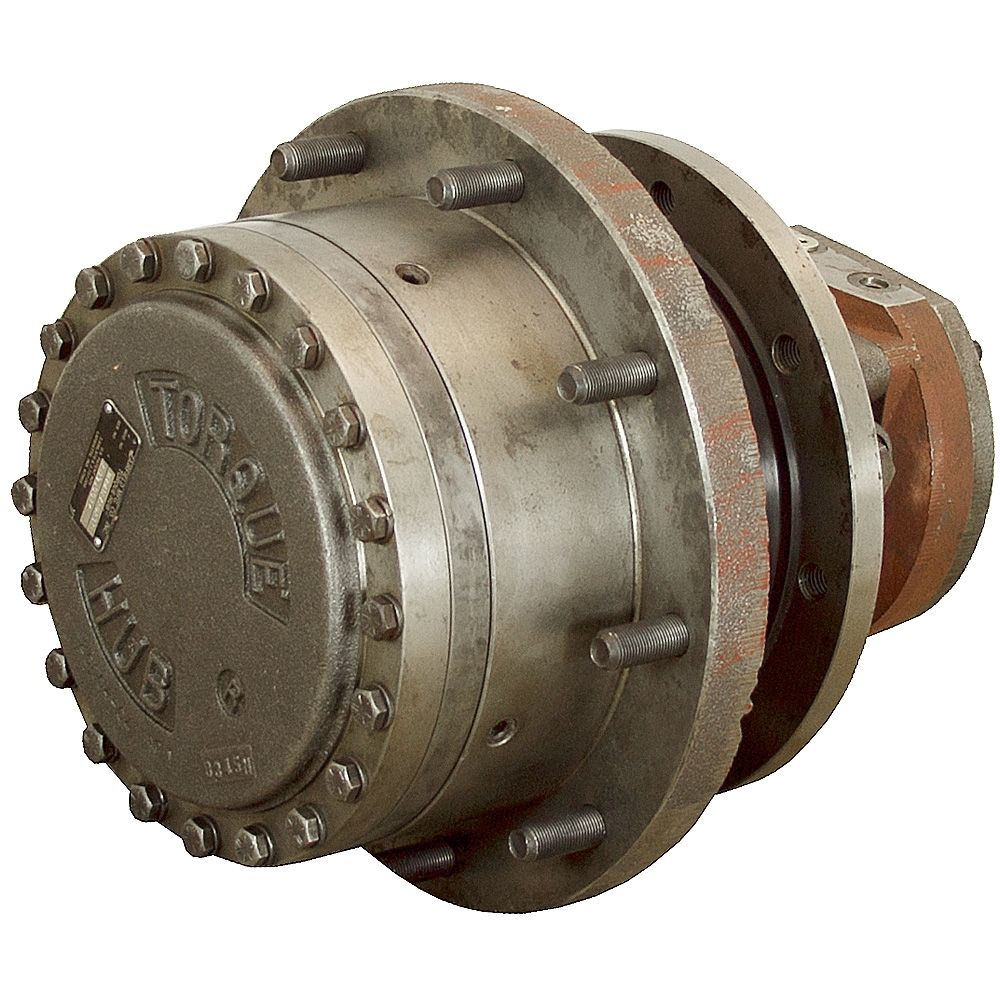

FAIRFIELD TORQUE HUB WITH HYDRAULIC MOTOR

FACTORY RECONDITIONED, Fairfield W2M1FZADA37T model planetary final drive with hydraulic motor. Piston hydraulic motor direct coupled to planetary drive. Built to deliver high torque for industrial machinery and off-road mobile equipment. Wheel hub drive mounts directly to drive wheel. Spring applied brake releases with 190-3000 PSI hydraulic pressure. Case drain on hydraulic motor must be connected to reservoir.

SPECIFICATIONS

• Reduction Ratio 37:1
• Torque 25000 in-lbs. cont.
• Torque 50000 in-lbs. int.
• Speed 140 RPM max.
• Speed 35 GPM max.
• Radial Load 15000 lbs.
• Spindle Mount Bolt Circle 9.1"
• Spindle Mount Holes Eight 5/8"-11
• Wheel Pilot Dia. 9-1/2"
• Wheel Hub Bolt Circle 11.1"
• Wheel Studs Nine 5/8"-18
• Ports Work SAE 12, Brake SAE 4, Drain SAE 10
• Overall Size 12" dia. x 13-3/4"
• Shpg. 185 lbs.
