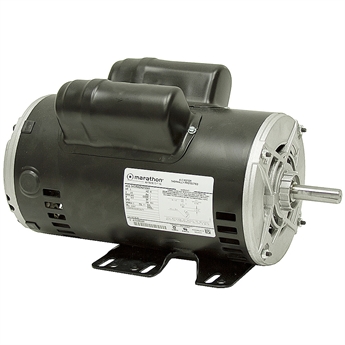

5 HP Marathon 3450 RPM 230 Volt AC Compressor Motor

5 HP 3450 RPM 230 VAC 56 FRAME COMPRESSOR DUTY MOTOR
New, MARATHON ELECTRIC model 9038. Special duty motor designed to replace motors on compressors. Thermal overload protection with manual reset. Steel frame and base. Welded base. Capacitor start/capacitor run.

Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.

SPECIFICATIONS

• Power 5 HP Definite Purpose Special Compressor Duty
• Voltage 230 VAC
• Amperage 19.6 Amps
• Speed 3450 RPM
• Phase 1
• Rotation CCW
• Service Factor 1.0
• Bearings Ball
• Enclosure ODP
• Duty Continuous Compressor Duty
• Frame 56H
• Mount Rigid Welded Base
• Shaft 5/8" diam. x 1-7/8" w/ 3/16" keyway
• Size 12-1/2" x 7" x 8"
• Shpg. 52 lbs.
