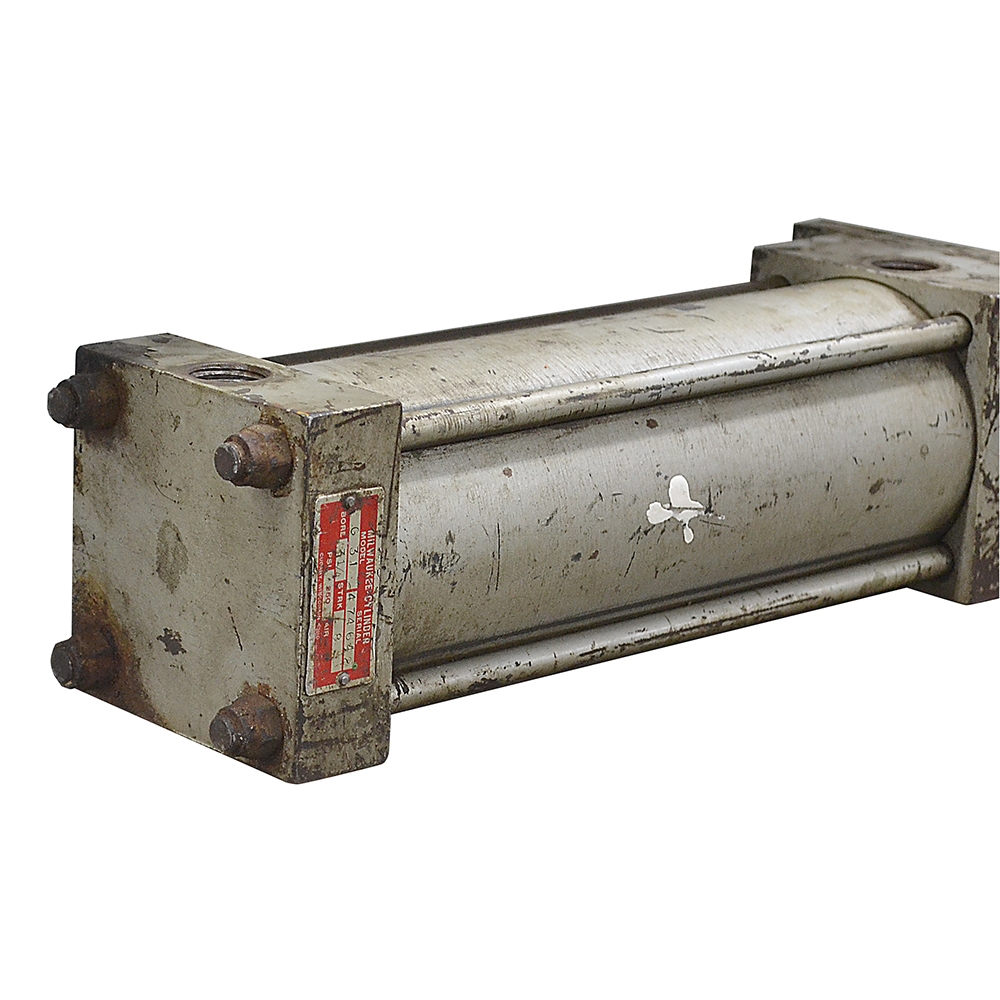

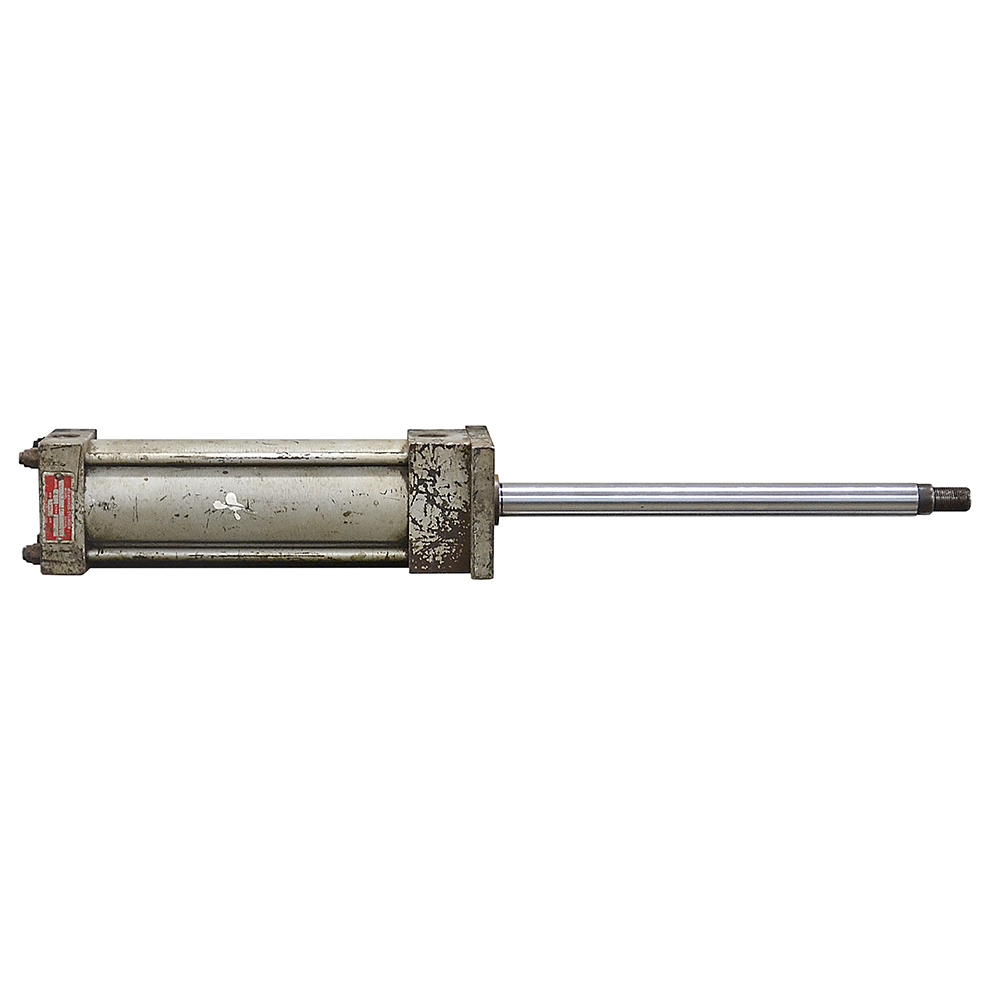

3.25" x 8" x 1" DA AIR CYL
Unused old inventory. Double acting air cylinder.

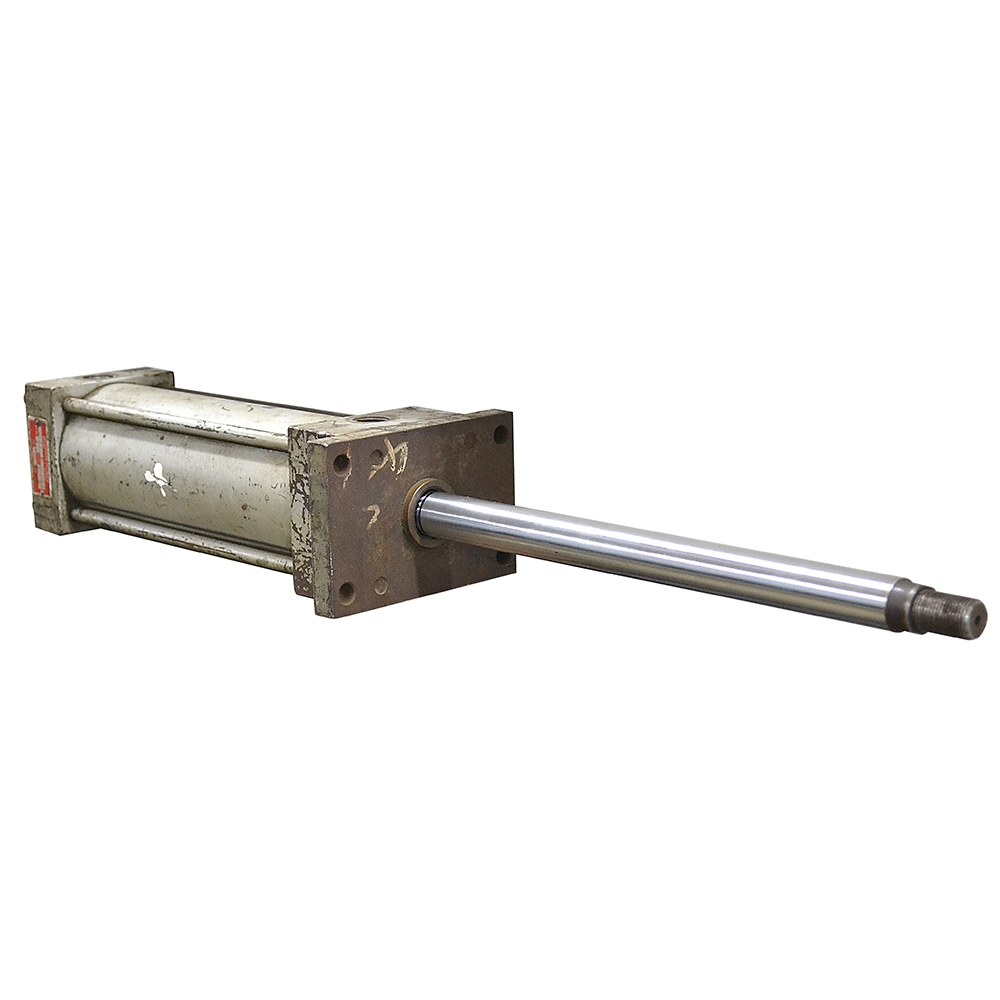

Cylinder piston seals leak badly. Cylinder rod end has a 5.5" x 0.625" x 3.75" mounting plate with four, 0.442 drilled holes on 4.665" bolt centers. MILWAUKEE CYLINDERS numbers on cylinder 474642.
SPECIFICATIONS
|
- Double Acting
- Bore x Stroke 3.25" x 8"
- Barrel Thickness 0.125"
- Gland Retainer Bolt on gland
- Pressure 250 PSI
- Rod Dia. 1"
|
- Ports 1/2" NPT
- Retracted Length 27"
- Gland Face to Rod Pin Center 13.75"
- Shpg. 26 lbs.
|
END MOUNTINGS | |
- Rod End Threaded
- Thread Size-Pitch 3/4"-16
- Thread Length 1"
| |
