Returned Item: This valve has been used briefly. It has been tested.

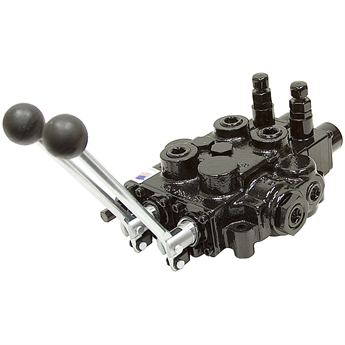

PRINCE AUTO-CYCLE CONTROL VALVE W/ POWER BEYOND
PRINCE model RD523MMEE5A4C1. Special Auto-Cycle valve allows operator to completely cycle (out and back) a double acting cylinder by only one handle movement. Same as our item 9-6587 only with a power beyond.
Ideal for log splitter applications
Both levers are pulled out to detent position, cylinder extends and at end of forward stroke one lever automatically returns to neutral and cylinder reverses. When fully retracted second lever returns to neutral. (3 work ports are used, two are tied to together and then run to rod end of cylinder, third connects to base end of cylinder).
SPECIFICATIONS
- For 1 Double Acting Cylinder
- Max 25 GPM
- Max 3000 PSI
- Inlet/Outlet/Power Beyond Ports 3/4" NPT
- Work Ports 3/4" NPT
- Adjustable relief valve 1500-3000 PSI factory set at 2000 PSI
- Double pressure relief detent
- Size 9 1/2" x 7 1/2" x 3 1/4"
- Shpg 29 lbs
