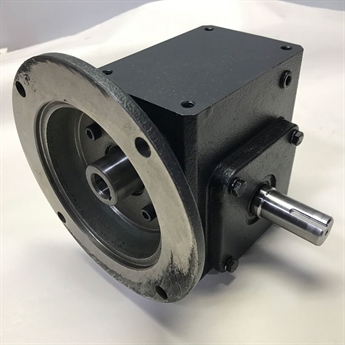

20:1 RA Gear Reducer 1.26 HP 56C Right Output

   Scratch & Dent / Missing Parts:  The mounting C-face was damage in shipping and has been replaced.  Missing the keystock and breather (a breather must be used).

20:1 GEAR REDUCER
WORLDWIDE ELECTRIC right-angle worm gear reducer. Standard NEMA-C motor mounting flange. Cast iron housing. Four tapped mounting holes on top and bottom of case. Shipped filled with oil.

SPECIFICATIONS

• Ratio 20:1
• Input Power 1.26 HP max.
• Input Speed 1725 RPM max.
• Output Speed 88 RPM max.
• Output Torque 737 in-lb. max.
• Output Centerline Height 2.062"
• Overhung Load 378 lbs.
• Motor Mount 56C
• Input Bore 5/8" keyed
• Output Type Right hand shaft
• Output Shaft 7/8" dia. x 1-15/16" keyed
• Mount 4-3/16" x 2-3/4" centers
• Size 7-5/16" x 6-1/2" x 6-13/16"
• Shpg. 26 lbs.
