Description
DESCRIPTION

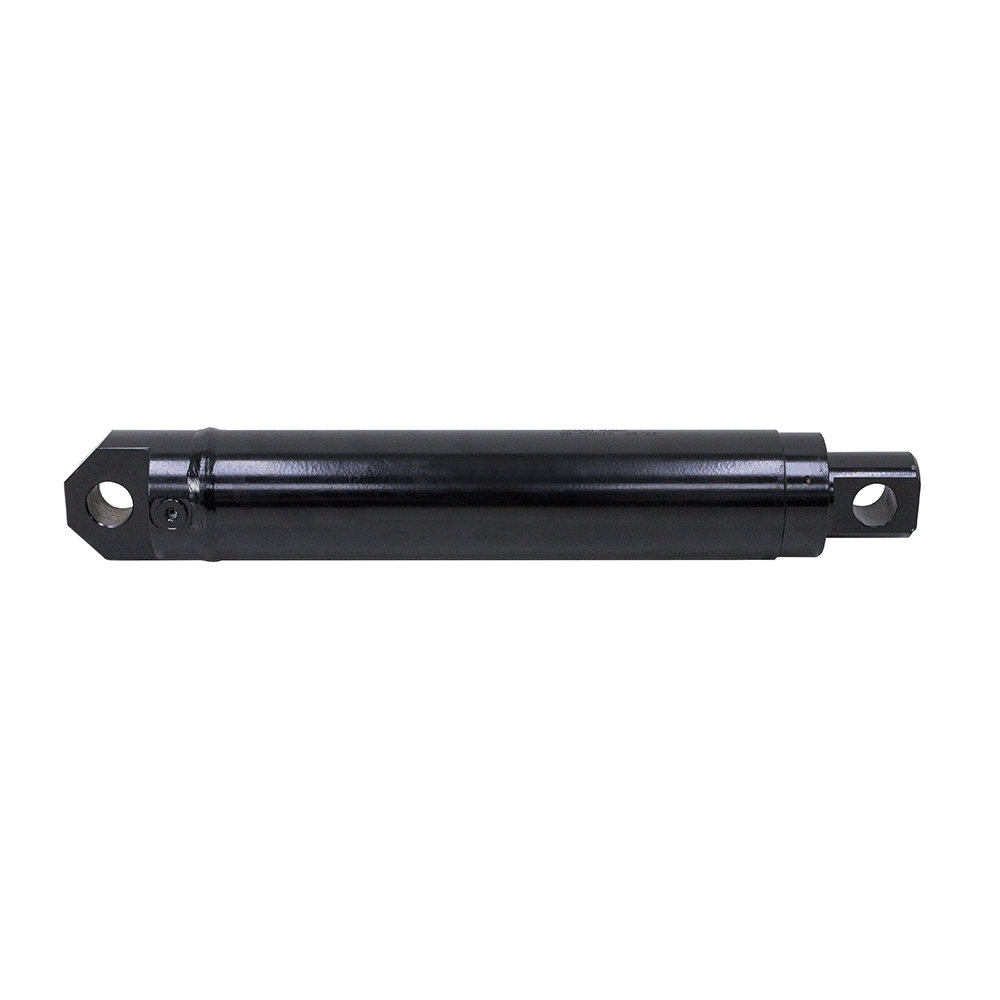

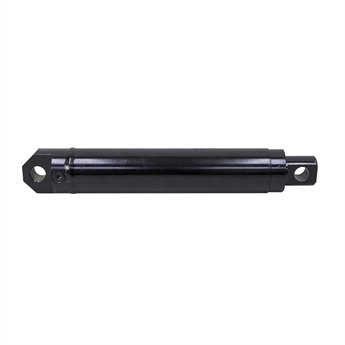

2.5" x 10" x 2" SINGLE-ACTING HYDRAULIC CYLINDER
New, Bailey 321-194 welded single-acting hydraulic cylinder.

SPECIFICATIONS
  • Single Acting
  • Bore x Stroke 2.5" x 10"
  • Gland Retainer Threaded in
  • Pressure 2500 PSI max.
  • Rod Dia. 2"
  • Ports SAE 6
  • Retracted Length 17.25"
  • Gland Face to Rod Pin Center 1.125"
  • Shpg. 31 lbs.
END MOUNTINGS
  • Rod End Thru-Hole
  • Width 1.5"
  • Pin Center to Base End 1"
  • Pin Hole 1"
  • Base End Tang
  • Width 1.5"
  • Pin-Center-To-Tang-End 1"
  • Pin Hole 1"
