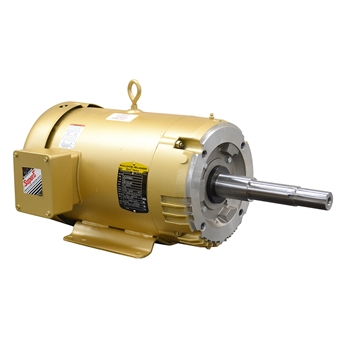

7.5 HP 1770 RPM 208-230/460 VAC 3PH Baldor Motor

7-1/2 HP 1770 RPM 208-230/460 VOLT AC BALDOR MOTOR
New, Baldor model# 37L079T859G2.

SPECIFICATIONS

• Power 7-1/2 HP
• Voltage 208-230/460 AC
• Phase 3
• Frequency 60 Hz
• Amperage 21-18.8/9.4 Amps
• Speed 1770 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearings Ball
• Enclosure TEFC
• Duty Continuous
• Frame 213JP
• Face Mount Four 1/2"-13 tapped holes on 7-1/4" diameter bolt circle
• Rigid Base Mount Four 0.41" diam. holes on 8-1/2" x 5-1/2" centers
• Shaft 1-38" dia. x 3-1/2" stepped down to 1-1/4" dia. x 2-1/4" w/ 1/4" keyway and tapped for 1/2"-13 x 1-1/2"
• Size 24-7/8" x 12-3/4" x 10-1/2"
• Shpg. 135 lbs.
