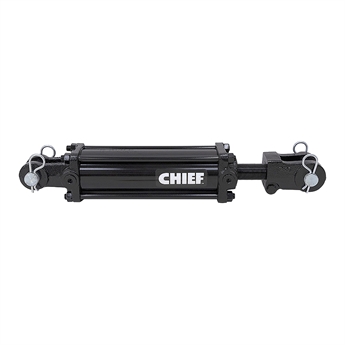

3x8x1.25 Double Acting Hydraulic Cylinder Chief 211348

CHIEF DOUBLE ACTING TIE-ROD CYLINDER
Brand new, Chief TC3 tie-rod hydraulic cylinder rated at 3000 PSI. TC3 cylinders are designed for use in a variety of double-acting applications including agricultural, compact construction and transportation equipment as well as waste and recycling. They provide outstanding performance and use clevis mounts for easy hookup. Featuring SAE O-ring ports for easy hookup every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability.

SPECIFICATIONS
Brand Chief Model Number 211348 Type Double-Acting Bore x Stroke 3'' x 8 ASAE'' Pressure 3000 PSI	Rod Dia. 1.25'' Column Load 21200 lbs. Ports SAE 8 Retracted Length 20.25'' Shpg. 31 lbs.

END MOUNTINGS
Rod End Clevis Outside Width 2.5'' Inside Width 1.17'' Throat Depth 2.125'' Pin Hole 1''	Base End Clevis Outside Width 2.5'' Inside Width 1.17'' Throat Depth 2'' Pin Hole 1''
