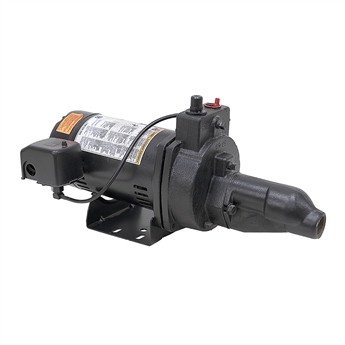

115/230 Volt AC 1/2 HP Diamond Shallow Well Jet Pump CJC50/CS

1/2 HP 115/230 VAC CONVERTIBLE JET PUMP
Old unused inventory, DIAMOND brand, Contractor series, model CJC50/CS convertible jet pump. Can be used for shallow wells up to 24 ft. deep. Cast iron pump housing, stainless steel motor shaft with ball bearings. Adjustable pressure switch set to turn on at 30 PSI, off at 50 PSI, ships plumbed to pump and wired to motor. Does not include pressure gauge, and foot valve. Auto reset thermal protection. UL and CSA listed. (Surface rust in the ports)


SPECIFICATIONS

• Brand Diamond
• Model Number 313520
• Voltage 115/230 Volt AC
• Amperage 12.4/6.2 Amps
• Power 1/2 HP
• Speed 3400 RPM
• Flow
    9 GPM @ 5'
   8.3 GPM @ 10'
   7.1 GPM @ 15'
   5.8 GPM @ 20'
   4.4 GPM @ 25'
• Duty Continuous
• Inlet Port 1" NPT
• Outlet Port 3/4" NPT
• Mount Four, 0.4" slotted holes on 2" x 5" centers
• Size 21-1/4" x 9" x 10"
• Shpg. 41 lbs.
