2:1 Hub City Gear Reducer

2:1 GEAR REDUCER

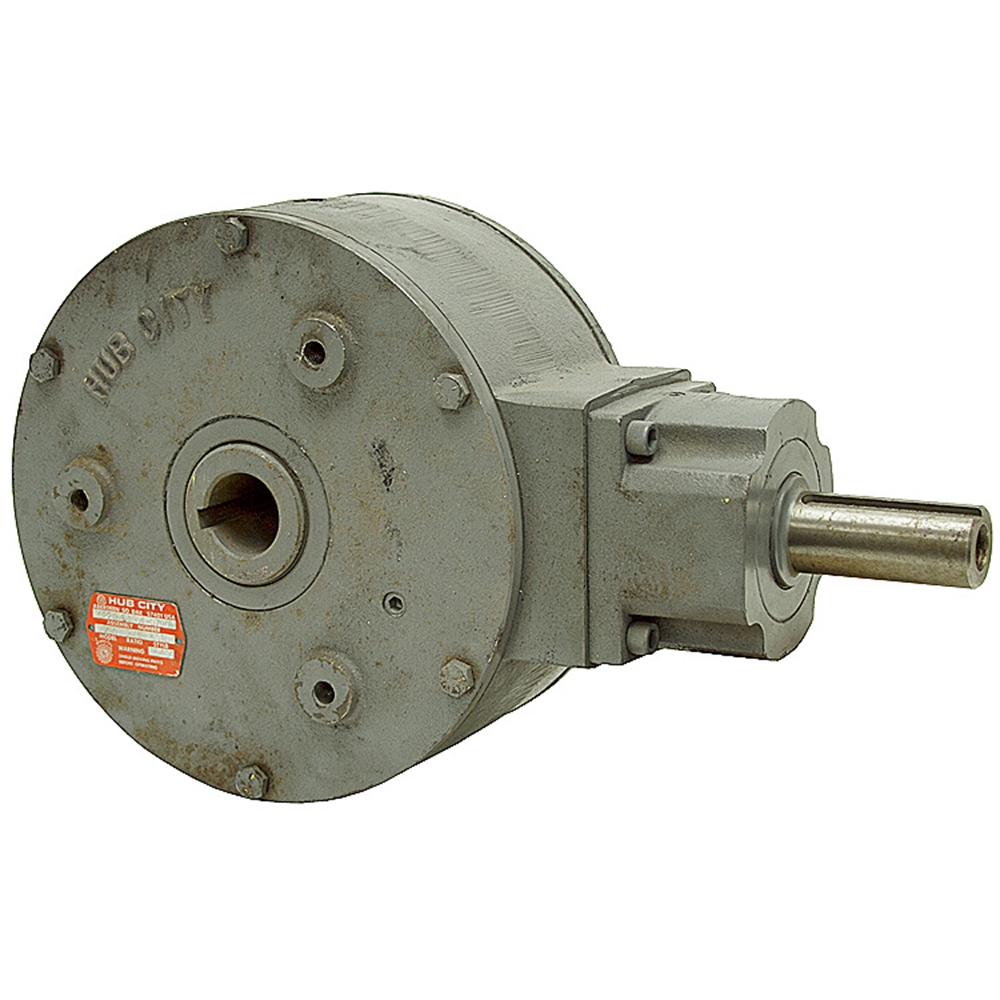

New, HUB CITY model 790 right angle gear reducer. Shaft mounted with tapped holes on each side of case. Cast iron housing and tapered roller bearings. 2.75 pint oil capacity.

SPECIFICATIONS

• Ratio 2:1
• Power 24 HP max.
• Input Speed 1150 RPM max.
• Output Speed 575 RPM max.
• Torque 2696 in.lbs. max.
• Input Shaft 1-3/8" dia. x 3" w/5/16" keyway
• OutputShaft 1-1/2" hollow bore w/3/8" keyway
• Mount 3 holes on 6-7/8" B.C.
• Size 14-1/2" x 10-3/4" x 6-1/2"
• Shpg. 90 lbs.
