Hydraforce Manual Directional Control Valve Cartridge Valve MP10-20K-0-N

HYDRAFORCE MANUAL DIRECTIONAL CONTROL VALVE MP10-20K-0-N

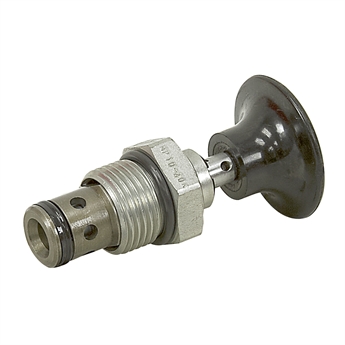

New, Hydraforce. A manual, 2-way, pull-to-open, screw-in hydraulic directional valve with lock position option.
The MP10-20 blocks flow from 2 to 1 flow path until an operator pulls the shaft outward. Note: Pressure at port 1 will directly act on the spool and spring. Port 1 is intended to be a tank port only. The bias spring allows for up to 12.4 bar (180 psi) back-pressure at 1 before the valve will open. A unique 90� rotational lock is optional for positive ?open? position holding. The valve resets to spring return-to-close with a 90� turn from the locked-open position.

SPECIFICATIONS

• Brand HydraForce
• Model MP10-20K-0-N
• Type Manual, Spring Return, Pull-to-Open Directional Control Valve
• Pressure Rating 3000 PSI max.
• Pressure Setting None
• Flow 15 GPM max.
• Fits into VC10-2 Cavity
• Features Black plastic knob/spring return, Cartridge Only
• Overall Size 3-5/16" x 1-1/2" dia.
• Shpg. 1/2 lb.
