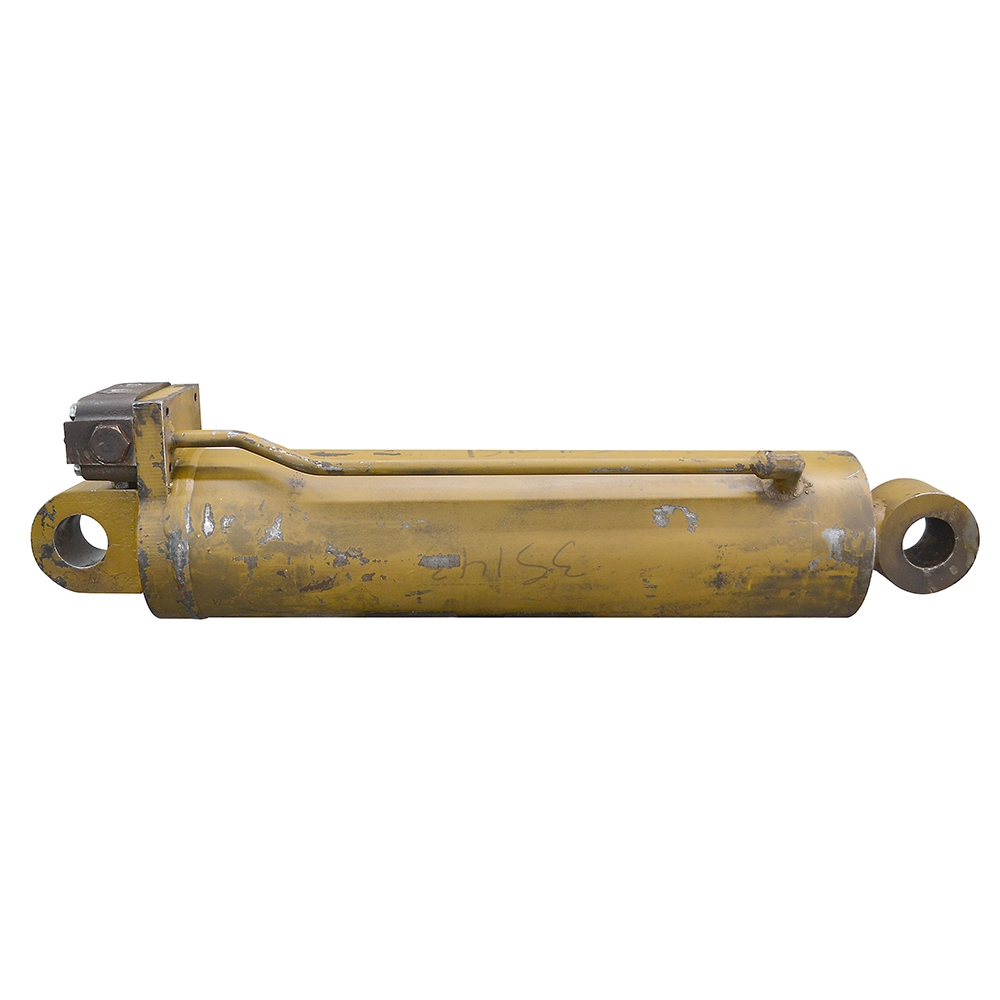

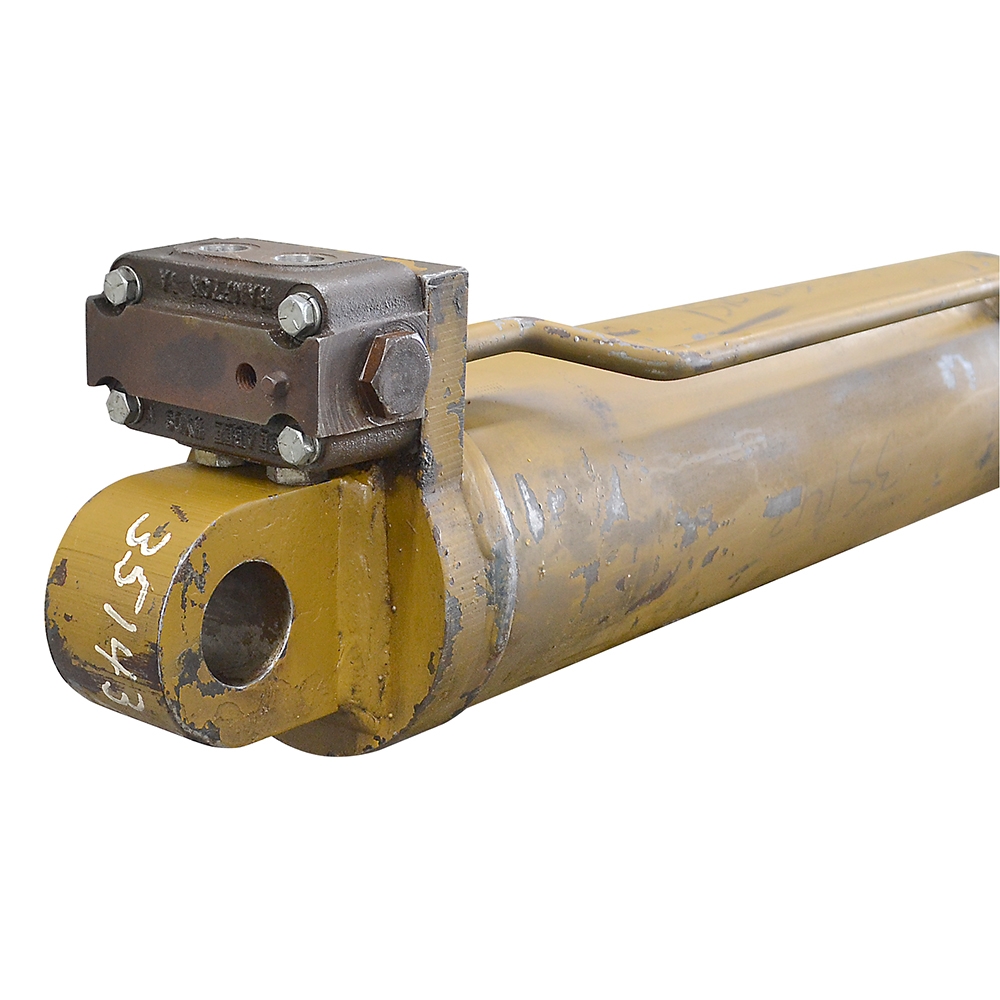

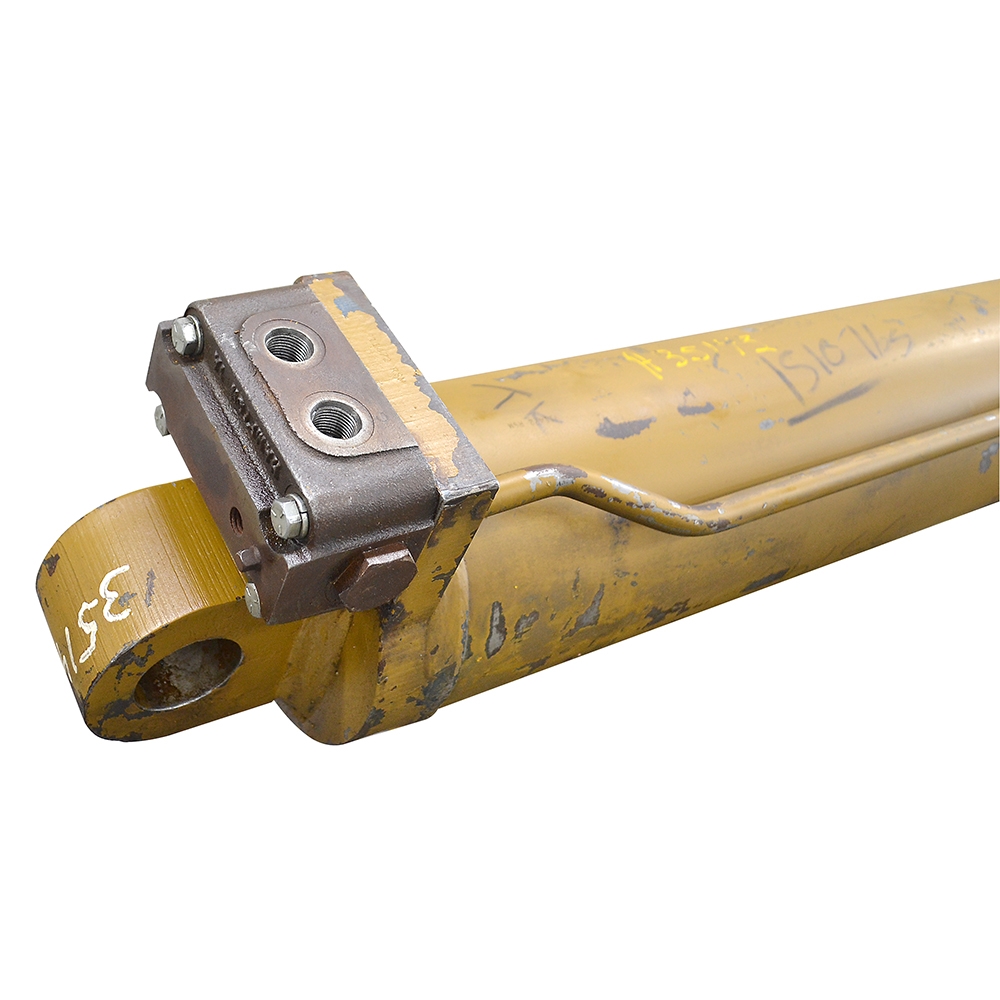

5.5" x 18.5" x 2.5" HYD CYL Unused old inventory. Welded, double acting hydraulic cylinder, stamped 911472 RSM. Manifold on base end 5.25" x 2.5" x 3", has both extend and retract ports with a pilot operated ball check valve on the extend port and two pilot ball valves on each side of the manifold.
SPECIFICATIONS |
- Double Acting
- Bore x Stroke 5.5" x 18.5"
- Gland Retainer Threaded in
- Pressure 2500 PSI max.
- Rod Dia. 2.5"
- Rod Thickness 2.5"
|
- Ports SAE 8
- Retracted Length 31.75"
- Gland Face to Rod Pin Center 3"
- Shpg. 208 lbs.
|
END MOUNTINGS |
|

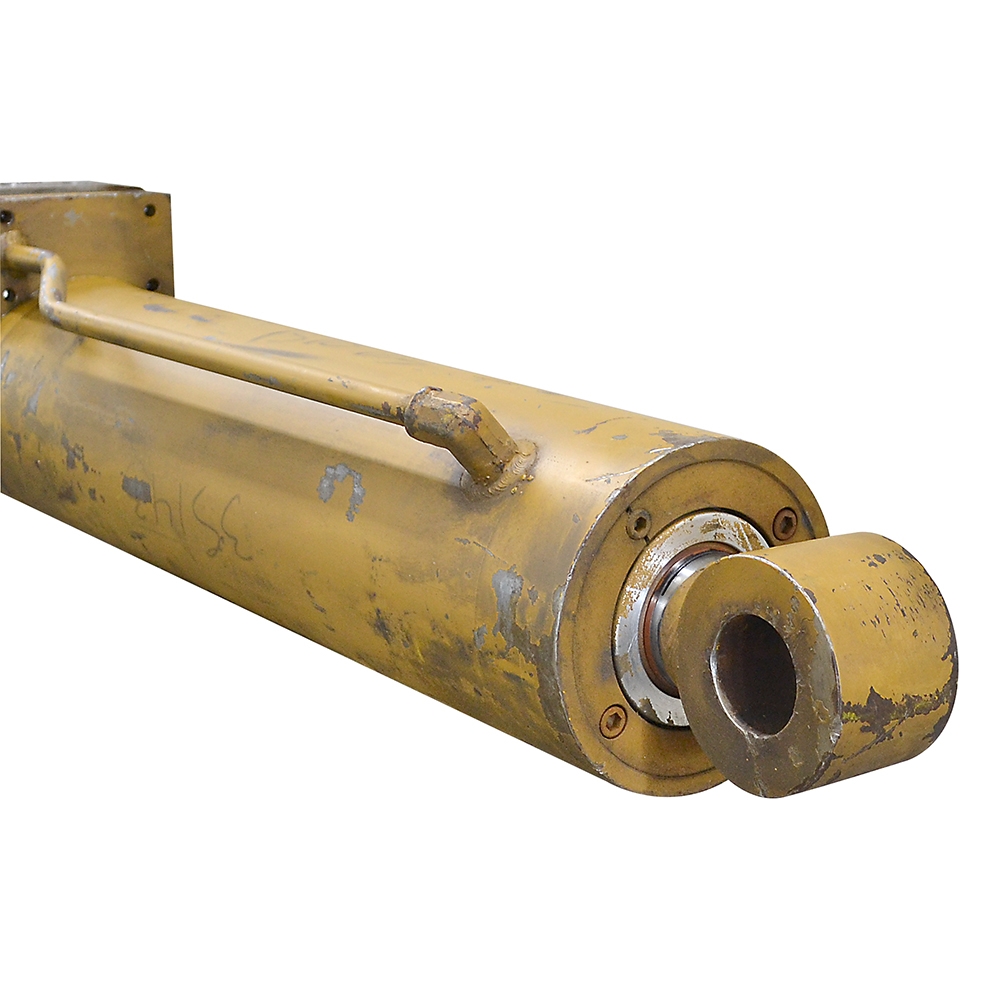

- Rod End Cross-Tube
- O.D. 4"
- Width 2.75"
- Pin Hole 2"
|
- Base End Tang
- Width 2.779"
- Pin-Center-To-Tang-End 1.918"
- Pin Hole 2"
|
