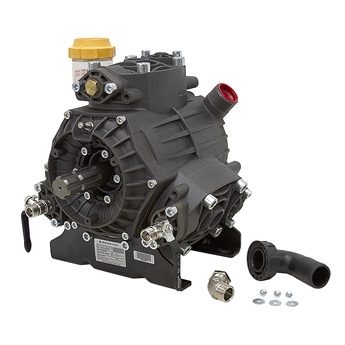

HIGH PRESSURE 3 DIAPHRAGM PUMP New, PENTAIR HYPRO 9915-DP1063AP-A high pressure 3 diaphragm pump. Diaphragm pump design offers compatability with many chemicals, smooth mechanical operation, longer operational pump life and consistent performance. The 9915 series diaphragm pumps have additional diaphragms to produce smoother flow with little to no pressure loss, producing more consistent and efficient spray coverage. Black oxide aluminum heads, manifold, and case. Duramax diaphragm, crown shaped pistons, and double piston rings. 316 Stainless steel spherical profiled valve poppet. Manufactured by Bertolini in Italy.
SPECIFICATIONS
- Model Number 9915-DP1063AP-A
- Number of Diaphragms 3
- Max. Flow 27.9 GPM
- Max. Pressure 725 PSI
- Max. RPM 550
- Required HP 13.9
- Max. Fluid Temperature 140°F/60°C
- Inlet Port 1-1/2"(40mm) Hose Barb
- Outlet Port 3/4" NPT
- Rotation Reversible
- Input Shaft 1-3/8" 6T-Splined shaft and 1-3/8" dia. keyed shaft
- Mount Four, 0.49" slotted holes on 6.3" x 9.1" centers
- Size 15.2" x 15.2" x 14.6"
- Shpg 118 lbs.
Pressure PSI |
RPM |
400 |
450 |
500 |
550 |
GPM |
HP |
GPM |
HP |
GPM |
HP |
GPM |
HP |
30 |
21.1 |
0.4 |
23.8 |
0.5 |
26.4 |
0.5 |
29.1 |
0.6 |
290 |
20.9 |
4.1 |
23.5 |
4.7 |
26.1 |
5.2 |
28.7 |
5.7 |
580 |
20.6 |
8.2 |
23.2 |
9.2 |
25.7 |
10.2 |
28.3 |
11.2 |
725 |
20.4 |
10.1 |
22.9 |
11.4 |
25.5 |
12.6 |
28.0 |
13.9 |
