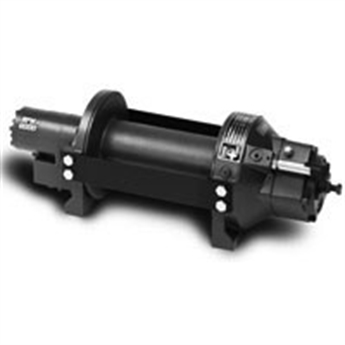

10,000 lb Ramsey Hydraulic Winch Model RPH10000

10,000 lb. HYDRAULIC WINCH

New Ramsey model RPH 10000 hydraulic winch. High performance for industrial winching applications. Planetary gearbox provides rapid cable speed. Oil disc brake. Hand clutch for freespooling. Overwind cable arrangement for CW rotation of drum during cable in operation. Drum rotation as viewed facing the hydraulic motor end.
SPECIFICATIONS

• Rated to pull 10,000 lb. on the first cable layer
• Cable speed 32 FPM @ 15 GPM (1st layer)
• Drum Capacity 115 ft. of 7/16" cable
• Drum size 9-3/4" between flanges, 4" dia. drum, 8-1/4" dia. flange
• Hydraulic System Requirements
• 15 GPM @ 2500 PSI
• 4 way cylinder spool valve with relief valve
• 10 micron filter
• Overall size 27 1/2" x 8 1/2" x 8 3/4"
• Shpg. 96 lbs.
