43.31:1 Size 87 14.76 HP Helical Bevel Gear Reducer Worldwide KHN87-40/1-H-184TC

43.31:1 Size 87 14.76 HP Helical Bevel Gear Reducer WWE KHN87-40/1-H-184TC

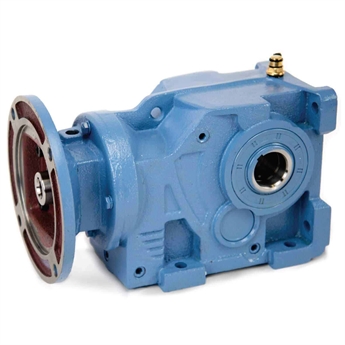

Brand new, World Wide Electric helical bevel gear reducer. Cast iron housing. Gearbox flanges are designed to accept NEMA C-Face electric motors. Foot mounts for horizontal or vertical mounting, hollow output bore. Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation. Pre-filled with HD320 mineral oil. Single shaft and double shaft output kits available (sold separately).

SPECIFICATIONS

• Manufacturer World Wide Electric
• Model Number KHN87-40/1-H-184TC
• Box Size 87
• Gear Stages 3
• Nominal Ratio 40:1
• Actual Ratio 43.31:1
• Output RPM @ 1750 RPM Input 40 RPM
• Input HP 14.76 HP max.
• Output Torque 20870 in.-lbs. max.
• Over-Hung Load 3450 lbs. max.
• Motor Mount 184TC
• Output Bore 2-3/8" Hollow Keyed, 5/8" Keyway
• Horizontal Foot Mount Four 0.87" holes on 7.09" x 7.09" centers
• Vertical Foot Mount Four 0.87" holes on 7.09" x 9.17" centers
• Cross Reference SEW K87
• Size 17.99" x 9.0" x 13.39"
• Shpg. 214 lbs.
