20 HP 1175 RPM 575 Volt AC 3Ph General Electric Motor

Item Number: 10-117825

Price: $199.95
TOP
Back to top

20 HP 1175 RPM 575 Volt AC 3Ph General Electric Motor

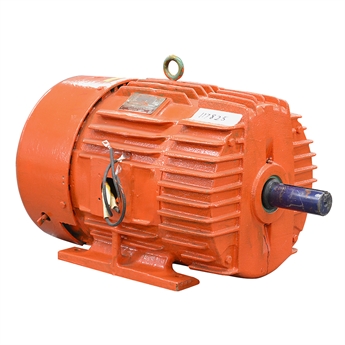

  • 20 HP 1175 RPM 575 Volt AC 3Ph General Electric Motor
  • 20 HP 1175 RPM 575 Volt AC 3Ph General Electric Motor - Alternate 1

20 HP 1175 RPM 575 Volt AC 3Ph General Electric Motor

item number: 10-117825 PRICE: $199.95 Out of Stock - No Longer Available
Must ship via Truck Freight
Please contact us for a quote
Calculate Shipping for Item 10-117825
20 HP 1175 RPM 575 Volt AC 3Ph General Electric Motor
Item Number: 10-117825
Price: $199.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION
20 HP 1175 RPM 575 VAC 3PH GENERAL ELECTRIC MOTOR
Removed from service, General Electric model# IF3425R. Motor shafts are scarred/pitted.

SPECIFICATIONS
  • Power 20 HP
  • Voltage 575 VAC
  • Phase 3
  • Frequency 60 Hz
  • Amperage 20 Amps
  • Speed 1175 RPM
  • Rotation Reversible
  • Service Factor 1.15
  • Bearings Ball
  • Enclosure TEFC
  • Duty Continuous
  • Frame 286T
  • Base Mount
  • Shaft 1-7/8" dia. x 4-1/2" long, with 1/2" keyway
  • Size 21" x 15-1/4" x 15"
  • Shpg. 469 lbs.
