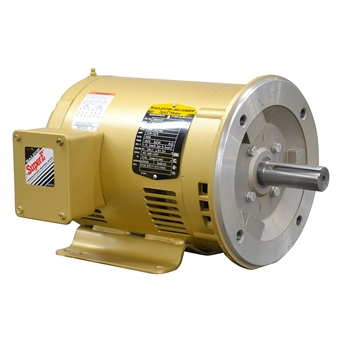

5 HP 3450 RPM 208-230/460 VAC 3PH Baldor Motor

5 HP 3450 RPM 208-230/460 VOLT AC BALDOR MOTOR
New, Baldor model# CEM3212T.

SPECIFICATIONS

• Power 5 HP
• Voltage 208-230/460 AC
• Phase 3
• Frequency 60 Hz
• Amperage 12.8-12/6 Amps
• Speed 3450 RPM
• Rotation Reversible
• Service Factor 1.15
• Bearings Ball
• Enclosure OPSB
• Duty Continuous
• Frame 182TC
• Base Mount Six 0.43" diam. holes on 7-1/2" x   4-1/2" to 5-1/2" centers
• Face Mount Four 1/2"-13 tapped holes on 7-1/4" diameter bolt circle

• Shaft 1-1/8" dia. x 2-3/4" w/ 1/4" keyway
• Size 13-5/8" x 10-5/8" x 9"
• Shpg. 63 lbs.
