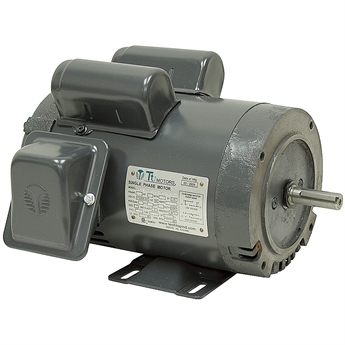

1 HP 3450 RPM 115/208-230 Volt AC Motor

1 HP 3450 RPM 115/208-230 VAC 56C MOTOR

New, TechTop model BL1-RS-OP-56C-2-B-C-1-CC motor. Steel construction. Ball bearings. Capacitor start and run. No thermal overload protection.

SPECIFICATIONS

• Power 1 HP
• Voltage 115/208-230 VAC
• Amperage 9.6/5.3-4.8 amps
• Speed 3450 RPM
• Rotation Reversible
• Phase 1
• Service Factor 1.15
• Bearings Ball
• Enclosure ODP
• Duty Continuous
• Frame 56C
• Mount
  Face 4 tapped 3/8"-16 holes on 5-7/8" dia. B.C.
  Base 4 slots on 4" to 5-3/4" x 3" centers
• Shaft 5/8" dia. x 2" long w/ 3/16" keyway
• Size 10-5/8" x 9" x 8-1/8"
• Shpg. 37 lbs.
