Description

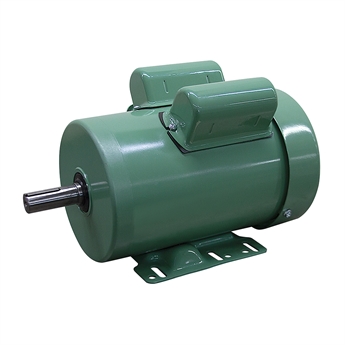

2 HP 1758 RPM 230 VAC BASE MOUNT MOTOR
Brand new, WORLDWIDE FD2-18-145T, farm duty heavy duty motor for agricultural and other industrial use. Totally Enclosed Fan Cooled (TEFC) enclosures suitable for indoor or outdoor protection. Capacitor start/capacitor run motor for reduced amperage and high torque. Manual thermal overload protection.

SPECIFICATIONS
  • Power 2 HP
  • Voltage 230 AC
  • Phase 1
  • Frequency 60 Hz
  • Amperage 7.8 Amps
  • Speed 1758 RPM
  • Rotation Reversible
  • Service Factor 1.15
  • Bearings Ball
  • Thermal Overload Protection Manual
  • Enclosure TEFC
  • Duty Continuous
  • Frame 145T
  • Base Mount Six 1-1/4" x 5/16" elliptical slots on 2" to 5" x 4-7/8" to 5-7/8" centers
  • Shaft 7/8" dia. x 2-1/2" overall length w/ 3/16" wide x 1-3/8" long keyway
  • Size 13-1/2" x 9-1/2" x 8-3/4"
  • Shpg. 60 lbs.
