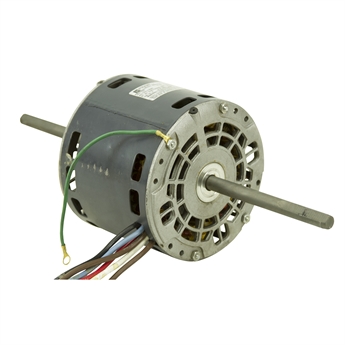

1/3 HP 1075 RPM MOTOR
New, EMERSON model# K55HXEEY-2727 three-speed, permanent split-capacitor motor. Separate 5 MFD, 370 VAC start capacitor required. Thermal overload protection with automatic reset.
SPECIFICATIONS
- Power 1/3 HP
- Voltage 115 VAC, 60 Hz
- Amperage 7.0 Amps FLA
- Speed 1075 RPM/3SPD
- Rotation Counterclockwise (Lead End)
- Phase 1
- Bearings Sleeve
- Enclosure Open
- Duty Continuous (Air-Over)
- Frame 48Y
- Mount 2-1/4" dia. resilient ring and 3-5/8" B.C. stud mount
- Front Shaft 1/2" dia. x 5-1/4" long w/ flat
- Rear Shaft 1/2" dia. x 5-1/16" long w/ flat
- Size 4-7/8" x 5-3/4" dia.
- Shpg. 17 lbs.
