1.5 HP 1730 RPM 115/208-230 Volt AC 145TC Motor

1-1/2 HP 1730 RPM 115/208-230 VAC 145TC MOTOR

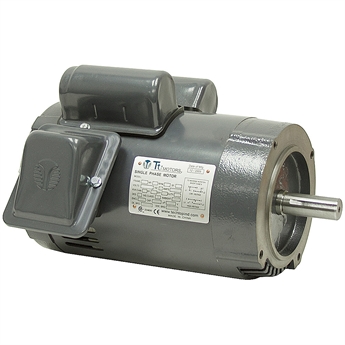

New, TechTop model BL1-RS-OP-145TC-4-B-C-1.5-CC-RND motor. Steel construction. Ball bearings. Capacitor start and run. No thermal overload protection.

SPECIFICATIONS

• Power 1-1/2 HP
• Voltage 115/208-230 VAC
• Amperage 13.8/7.6-6.9 amps
• Speed 1730 RPM
• Rotation Reversible
• Phase 1
• Service Factor 1.15
• Bearings Ball
• Enclosure ODP
• Duty Continuous
• Frame 145TC
• Mount Face 4 tapped 3/8"-16 on 5-7/8" dia. B.C.
• Shaft 7/8" dia. x 2-1/4" long w/ 3/16" keyway
• Size 11" x 9" x 7-7/8"
• Shpg. 42 lbs.
