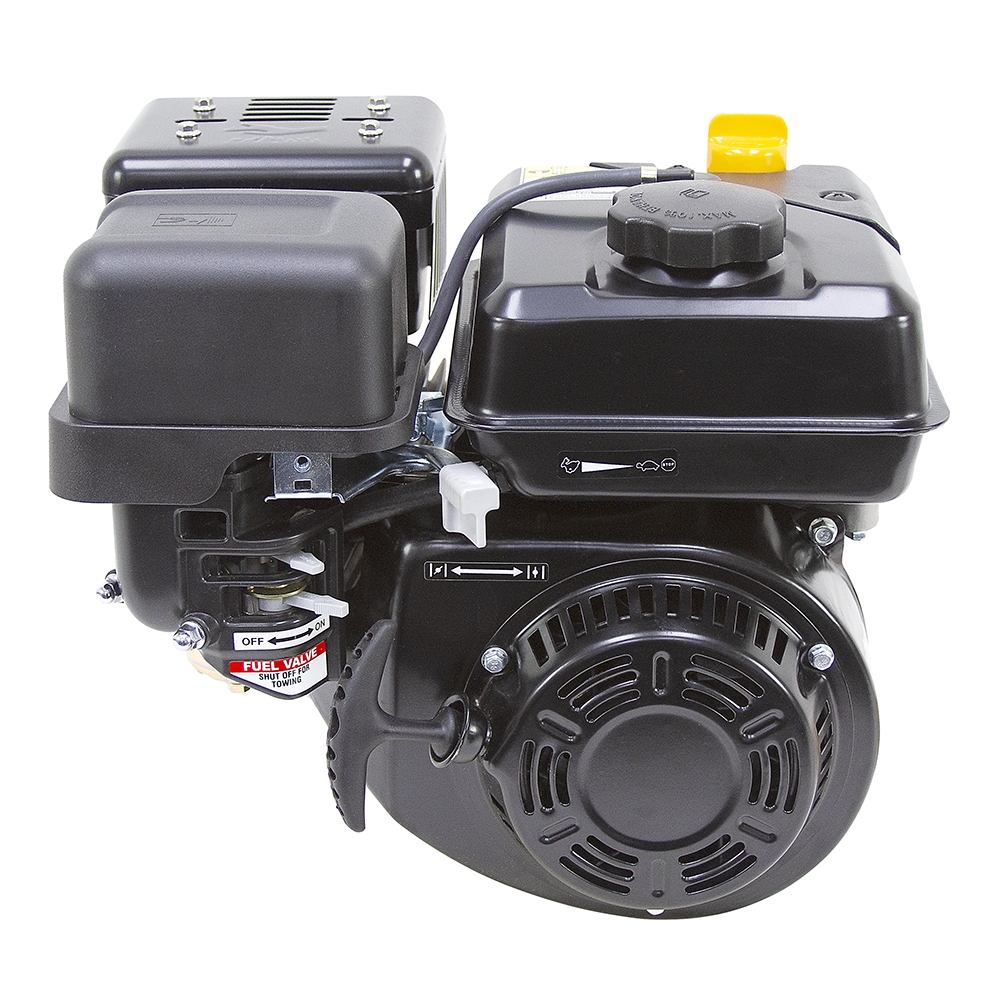

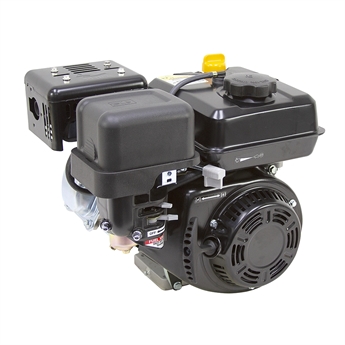

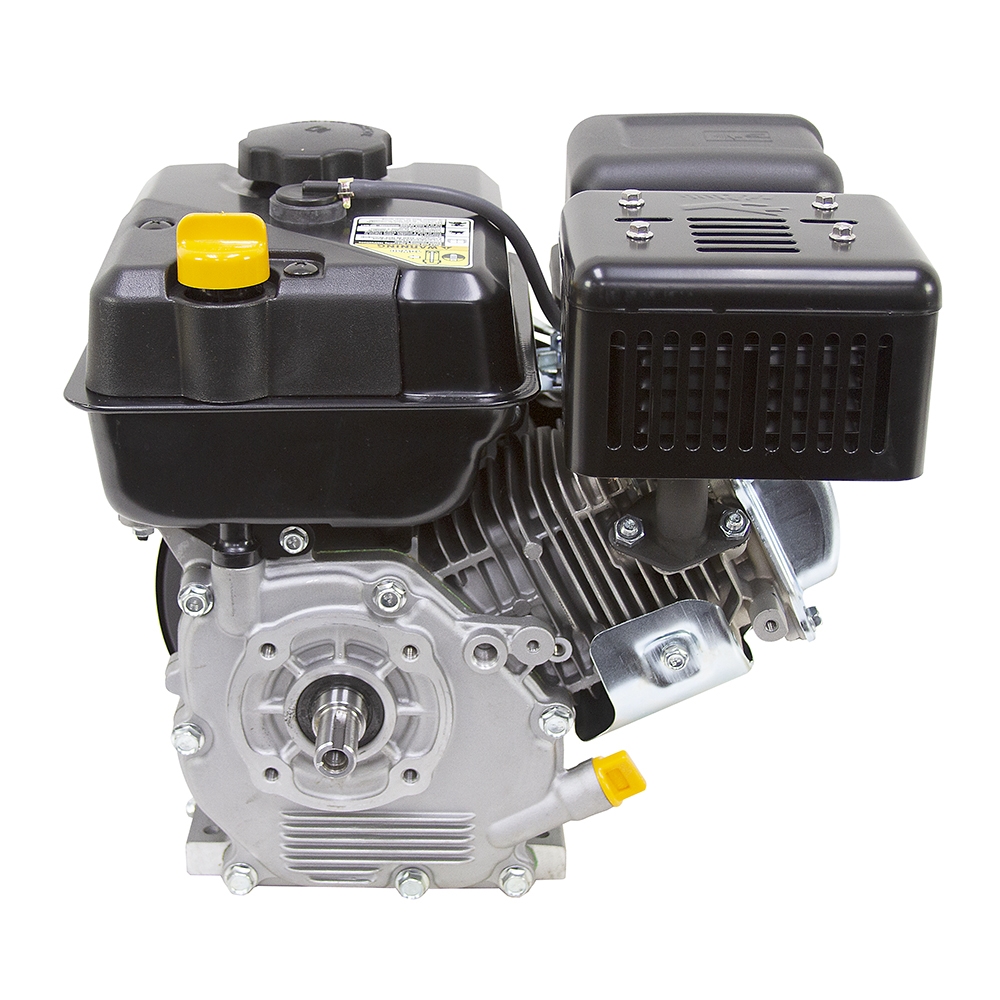

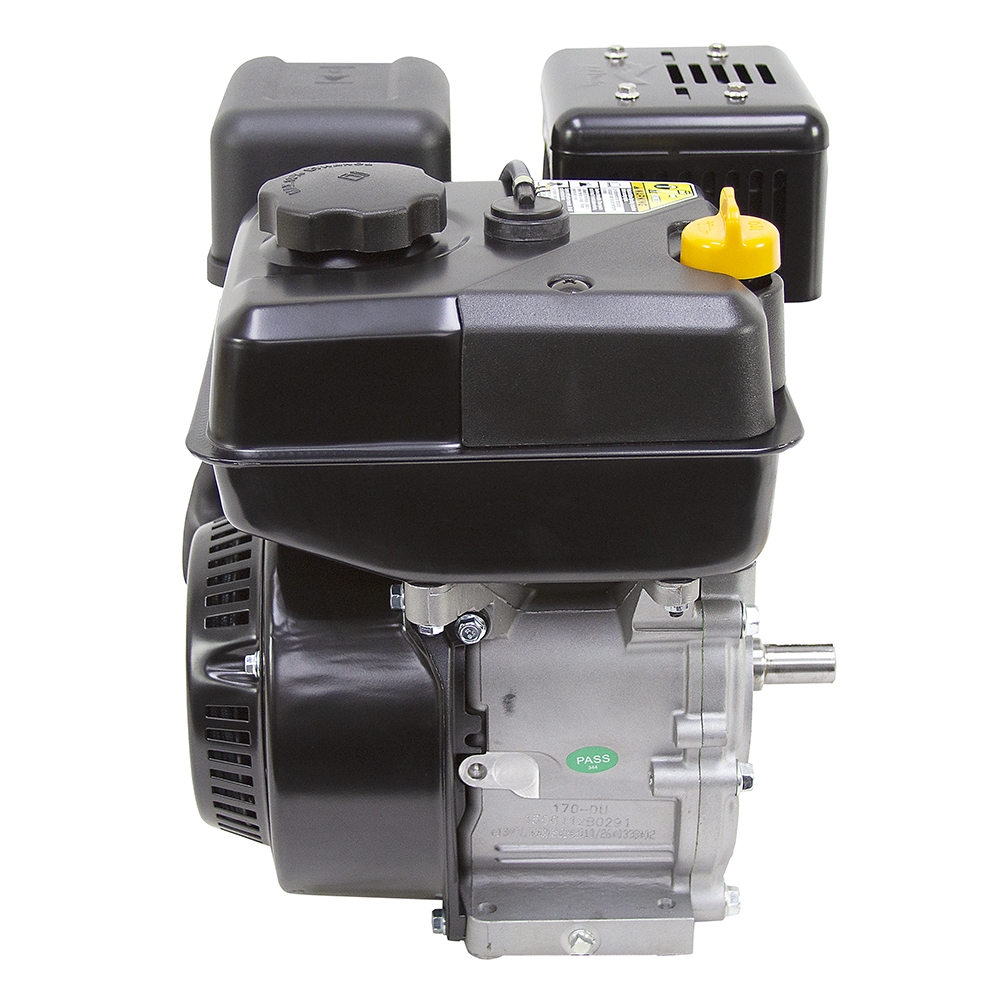

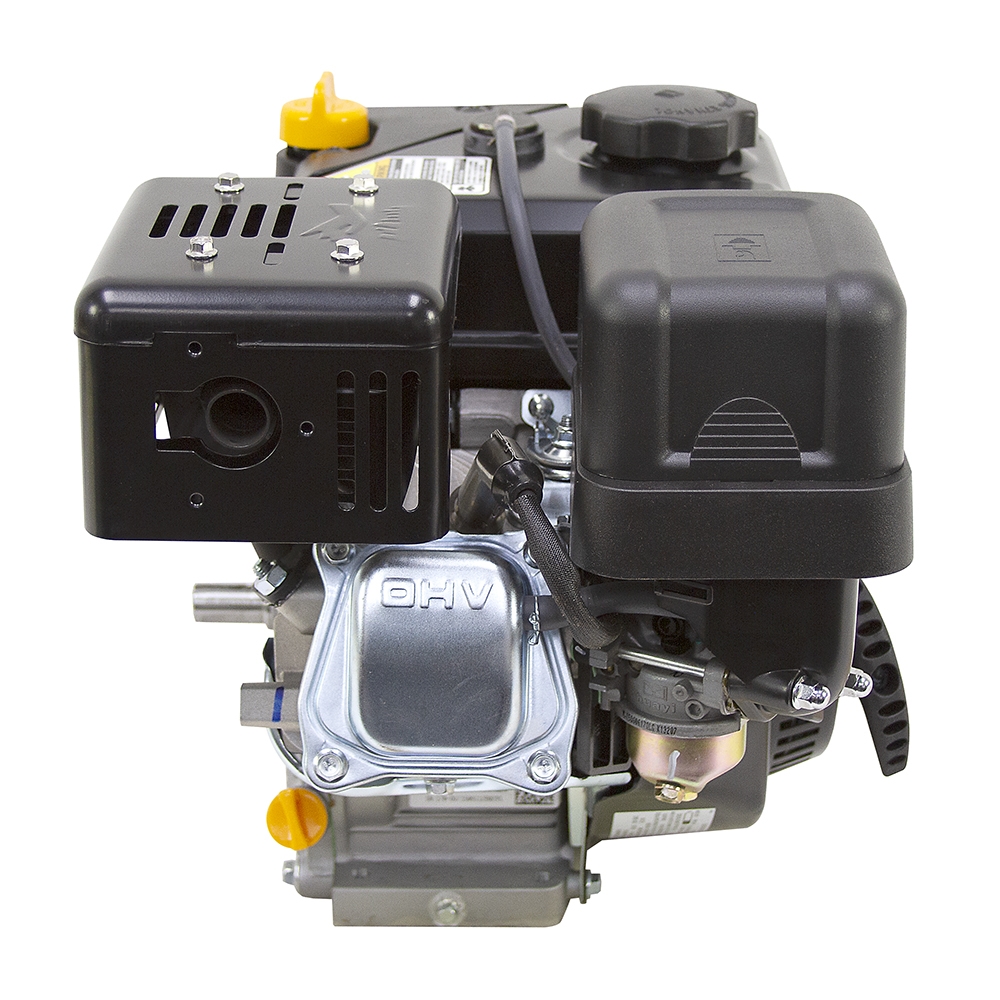

208cc Zongshen Horizontal Engine

208cc HORIZONTAL ENGINE
New, ZONGSHEN horizontal shaft engine with recoil start. Manual choke and detented throttle control. Fuel shutoff lever. Cast iron cylinder sleeve. Muffler with guard. Overhead valves and dual ball bearings.

SPECIFICATIONS

• Model 170-DU
• Torque 8 ft.lbs.
• Disp. 208 cc.
• Speed 3600 RPM
• Start  Recoil
• Shaft Horizontal
• Crankshaft 3/4" dia. x 1.72" w/3/16" keyway, tapped 5/16-24
• Mount 3-1/8" x 6-3/8"
• Accessory Mount 4 bolt, 3-5/8" bolt circle
• Fuel Tank Yes 2.9 quarts
• Size 15" x 11-1/2" x 14"
• Actual Weight 35 lbs.
• Dimensional Shpg. 48 lbs.
