Description

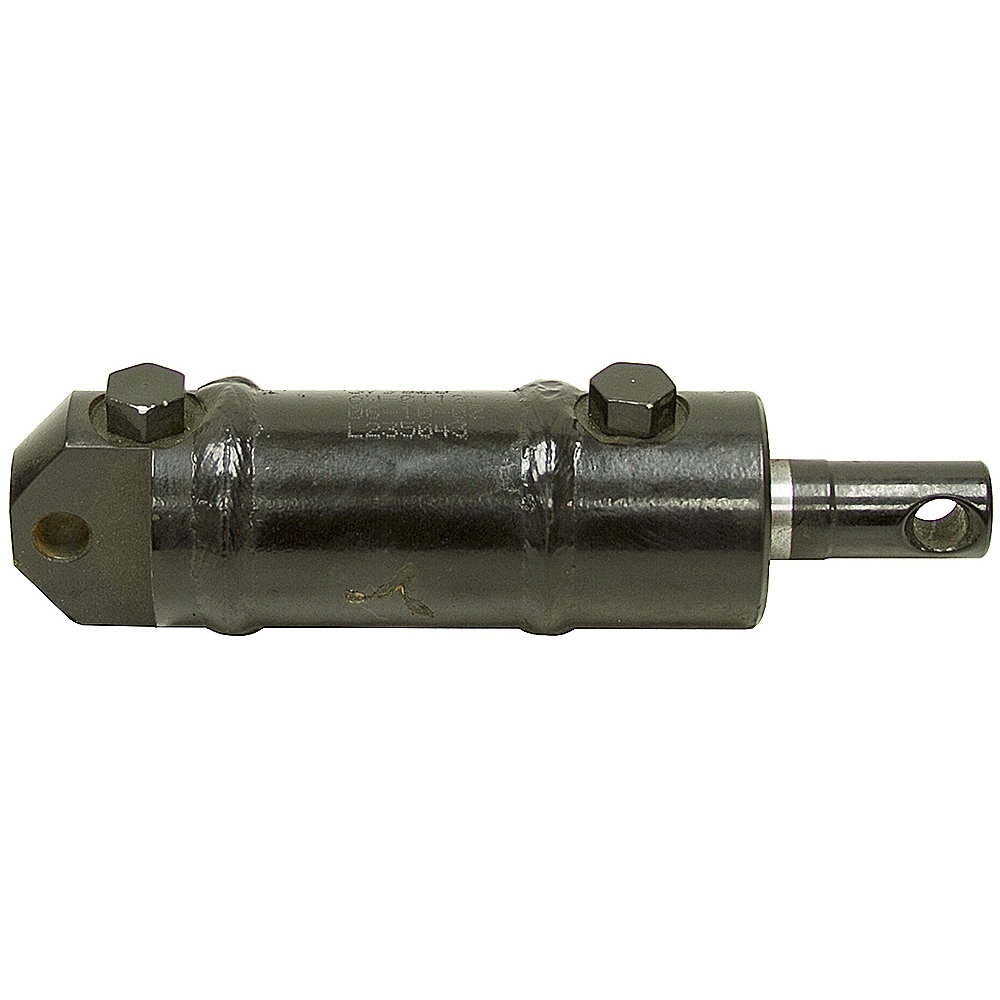

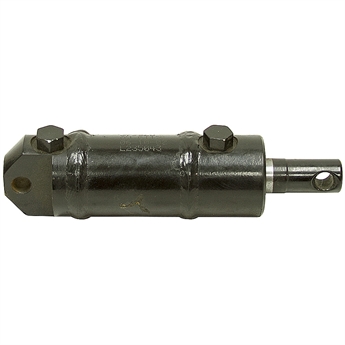

1.5" x 1.5" x 0.75" DA HYDRAULIC CYLINDER PRINCE AW-0112
New. Non-repairable welded cylinder.
SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 1-1/2" x 1-1/2"
  • Barrel Thickness 1/8"
  • Pressure 2500 PSI max.
  • Rod Dia. 3/4"
  • Ports SAE 4
  • Retracted Length 6-5/16"
  • Shpg. 5 lbs.
END MOUNTINGS
  • Rod End Thru-Hole
  • Pin Center to Rod End 3/8"
  • Thur-Hole Width 3/4"
  • Pin Hole 10mm
  • Base End Tang
  • Max Thickness 3/4"
  • Pin Center to Tang End 3/8"
  • Pin Hole 10mm
