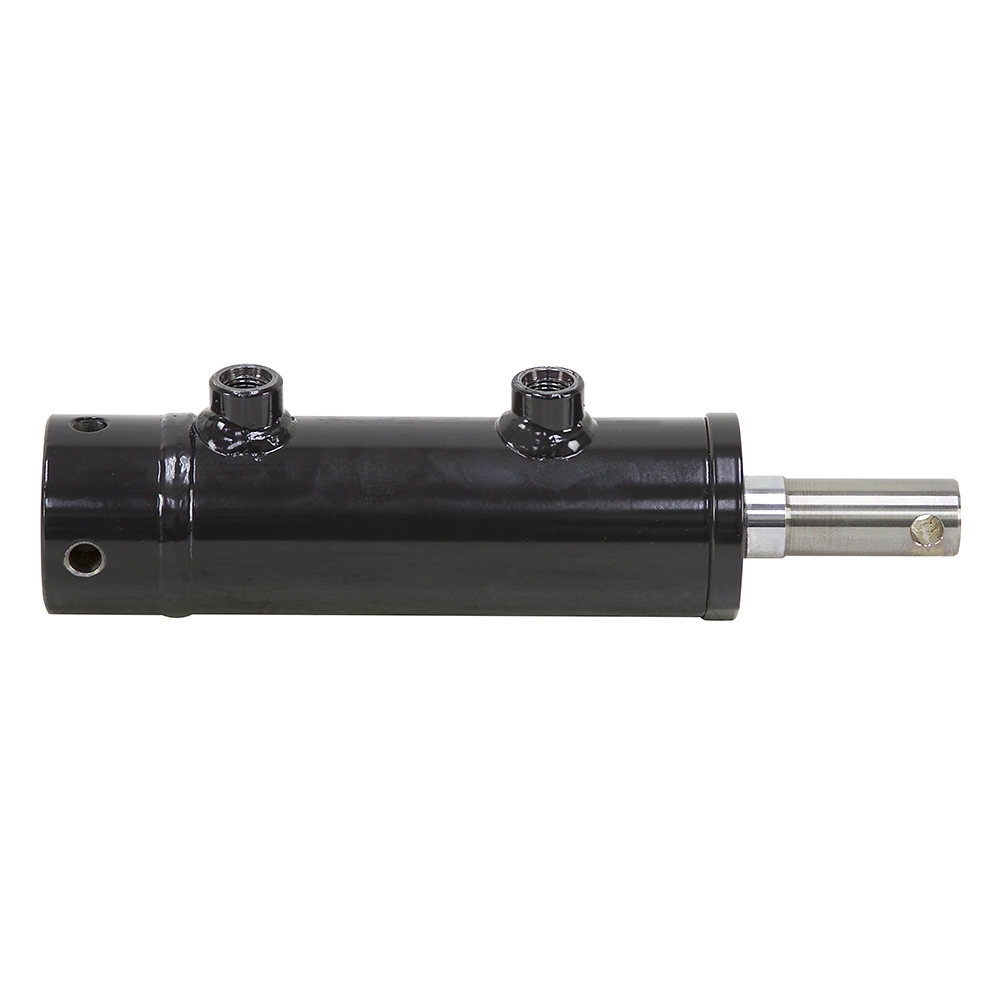

2x2.5x1 DA Hydraulic Cylinder Monarch 647110

2" x 2.50" x 1" DA HYDRAULIC CYLINDER
New. Double acting hydraulic cylinder. Monarch model# 647110 Removable SAE 6 to ORFS 6 check valve installed on push port.

SPECIFICATIONS
Double Acting Bore x Stroke 2" x 2.5" Barrel Thickness .150" Gland Retainer Threaded in gland Pressure 1500 PSI max. Rod Dia. 1"	Ports SAE 6 Retracted Length 9.90" Shpg. 11 lbs.

END MOUNTINGS
Rod End Thru-Hole Width 0.930" Pin Center to Rod End 0.410" Pin Hole 3/8"	Base End Thru-Hole Width 2.38" Pin Center to Base End 0.5" Pin Hole 3/8"
