2x48x1 Double Acting Trunnion Hydraulic Cylinder

Item Number: 9-9801

Price: $149.99
TOP
Back to top

2x48x1 Double Acting Trunnion Hydraulic Cylinder

2x48x1 Double Acting Trunnion Hydraulic Cylinder

item number: 9-9801 PRICE: $149.99 Out of Stock - No Longer Available
Calculate Shipping for Item 9-9801
2x48x1 Double Acting Trunnion Hydraulic Cylinder
Item Number: 9-9801
Price: $149.99
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description

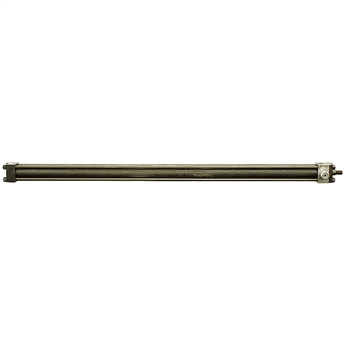

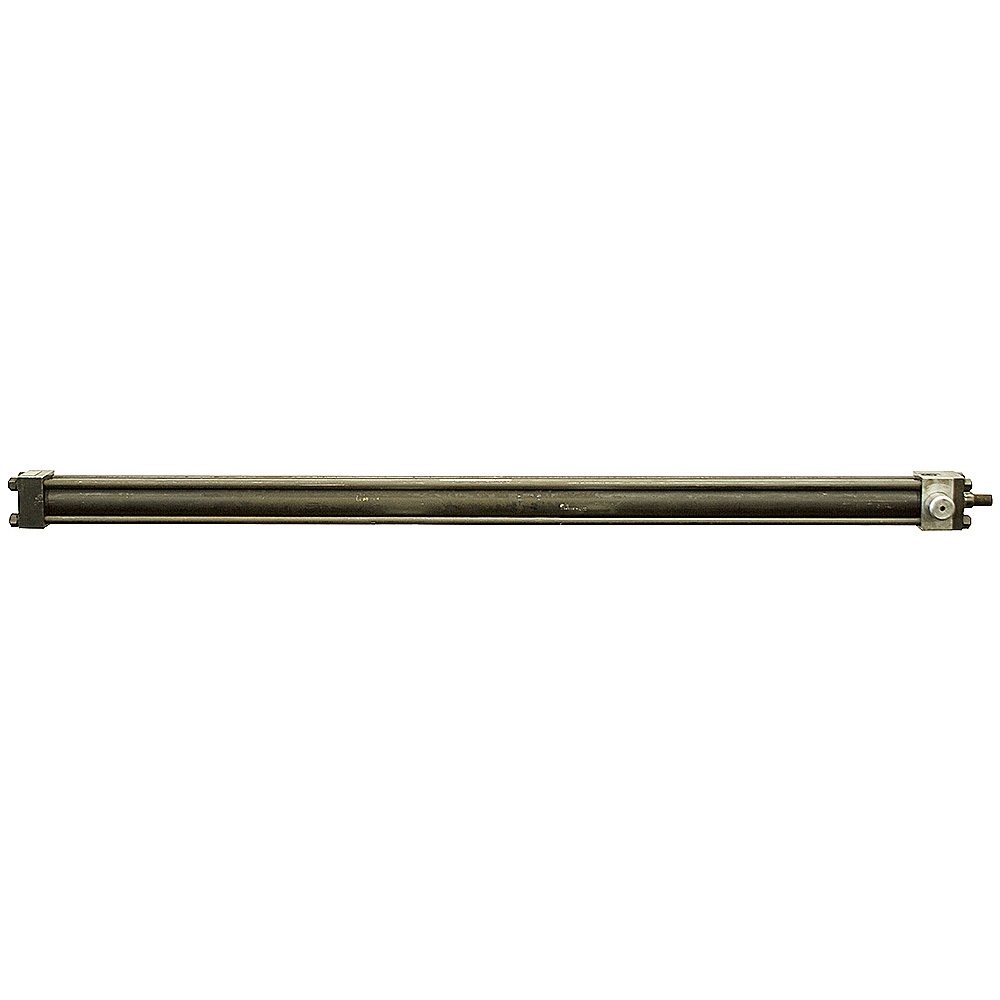

2" x 48" x 1" DA TRUNNION HYDRAULIC CYLINDER
Unused, old inventory. Eaton Hydro-Line model# N5U-2X48 NFPA-style, double-acting, tie-rod cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2" x 48"
  • Barrel Thickness 3/16"
  • Pressure 3000 PSI max.
  • Rod Dia. 1"
  • Ports SAE 10
  • Retracted Length 3-1/2"
  • Shpg. 51 lbs.
END MOUNTINGS
  • Rod End Threaded
  • Thread size-Pitch 3/4"-16
  • Thread Length 1-1/8"
  • Trunnion Male
  • Pin Outside Width 5-3/4"
  • Pin Inside Width 3"
  • Pin Center to Rod Pin Center 3-1/2"
  • Pin Center to Base End 51-3/4"
  • Pin Diameter 1-3/8"
