3.25x7.5x1.5 DA Hydraulic Cylinder 149878C91

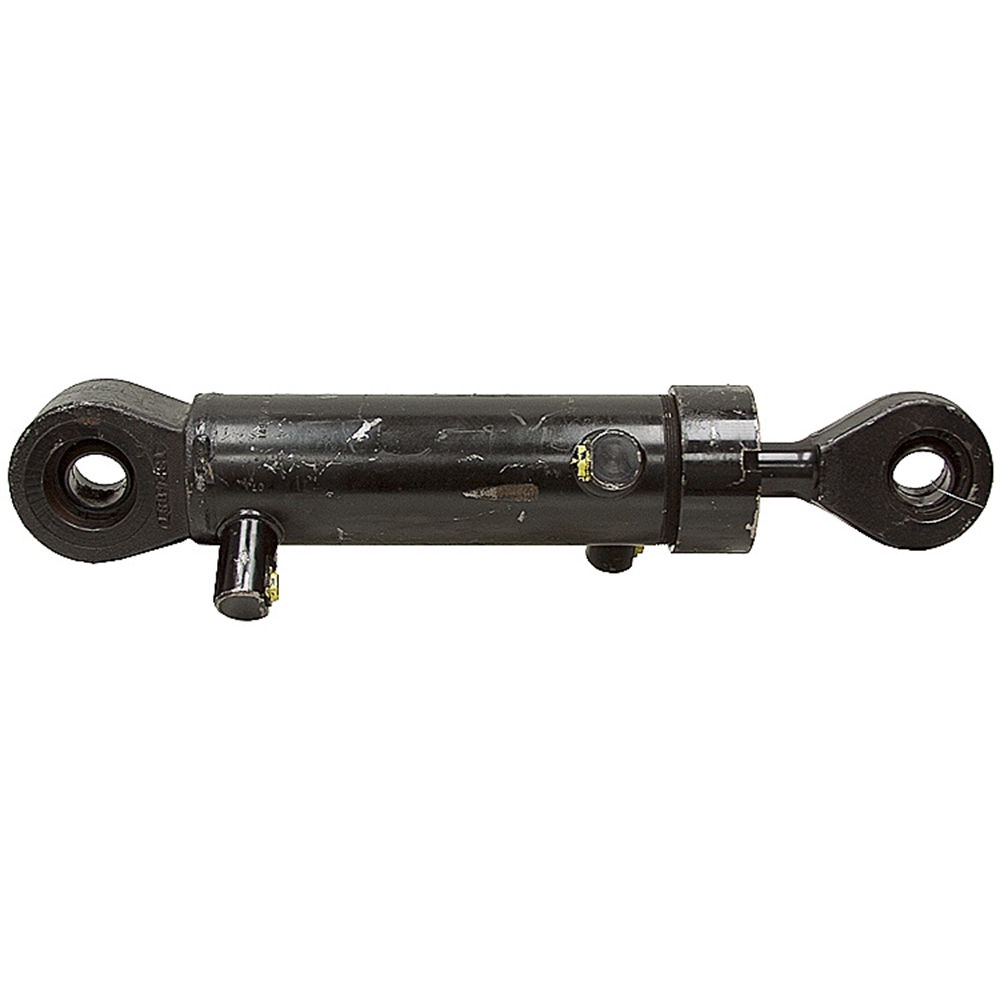

3-1/4" x 7-1/2" x 1-1/2" DA HYD CYL WITH 3 PORTS
New, welded hydraulic cylinder with thread-on gland retainer. 3/8" barrel tubing thickness. Two retract ports, one faces rod end, one faces base end.
"149878C91 1A 07J" stamped into barrel.

SPECIFICATIONS
Double Acting Bore x Stroke 3-1/4" x 7-1/2" Pressure 3000 PSI max. Rod Dia. 1-1/2"	Ports SAE 8 Retracted Length 21-7/8" Shpg. 58 lbs.

END MOUNTINGS

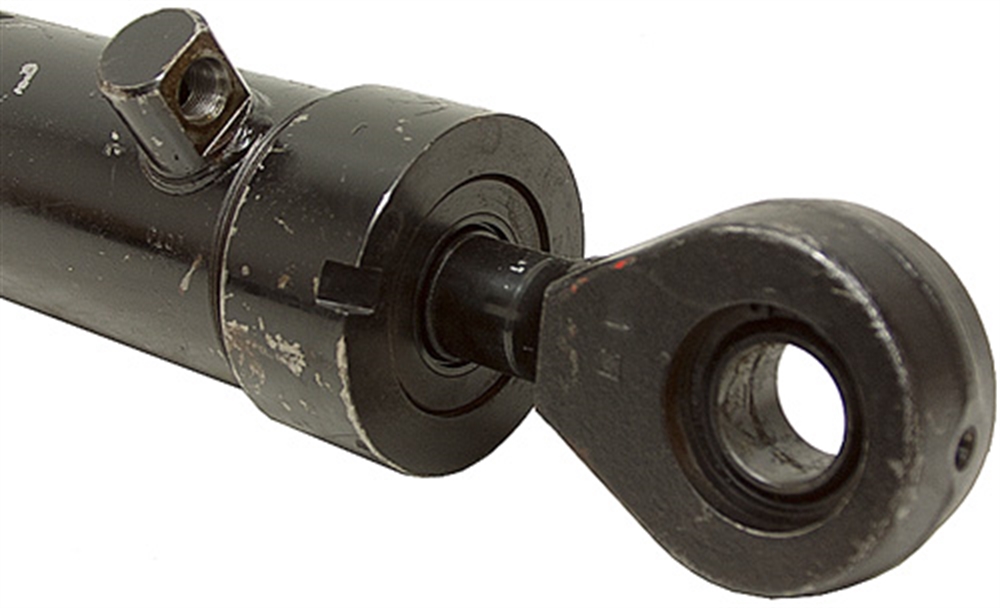

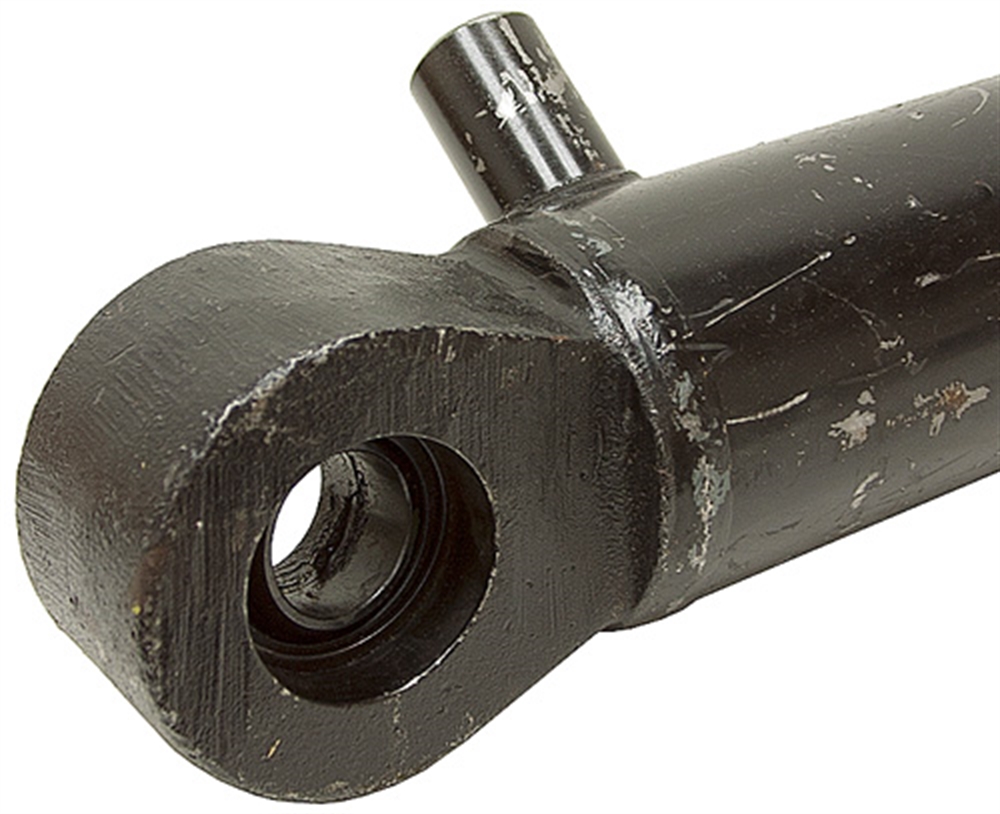

Rod End Tang W/Swivel Eye Outside Width 2" Height 4-1/4" Pin-Center-To-Tang-End 1-7/8" Pin Hole 1-1/2"	Base End Tang W/Swivel Eye Outside Width 2-3/4" Height 4-3/8" Pin-Center-To-Tang-End 2-1/4" Pin Hole 1-1/2"
