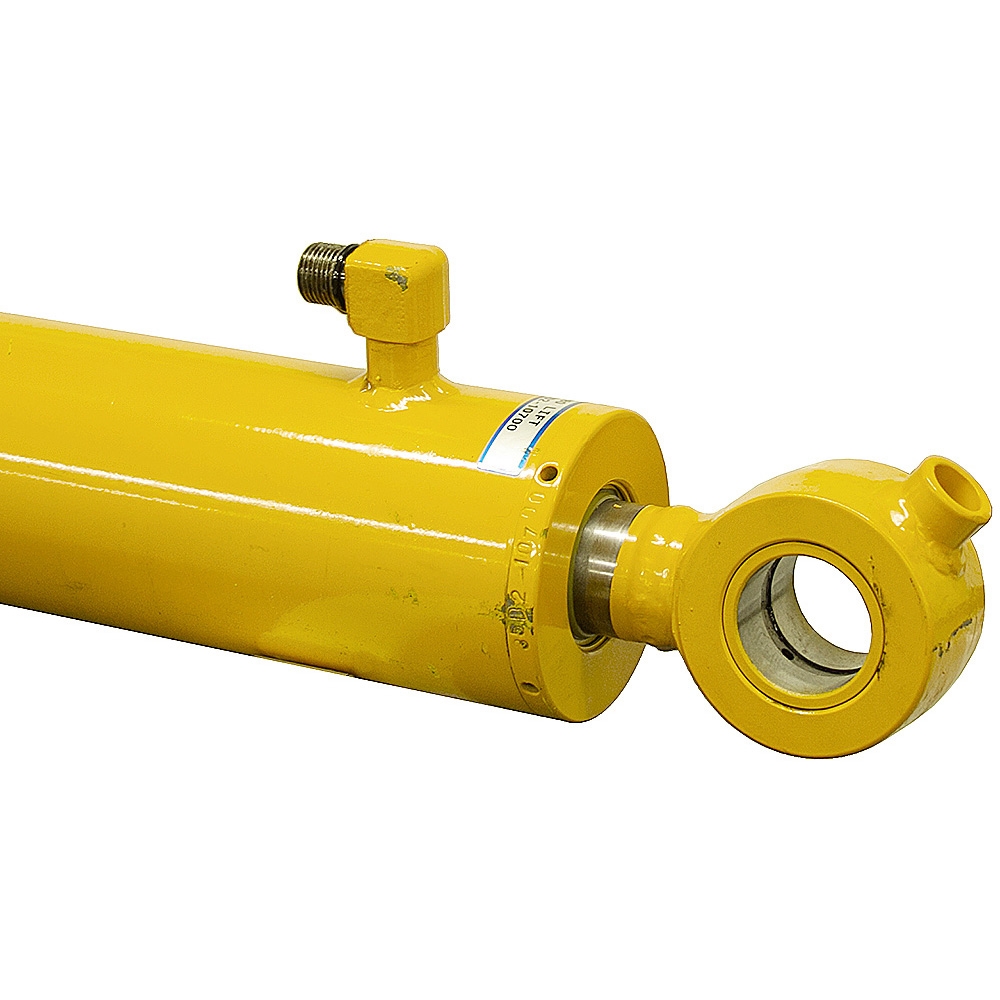

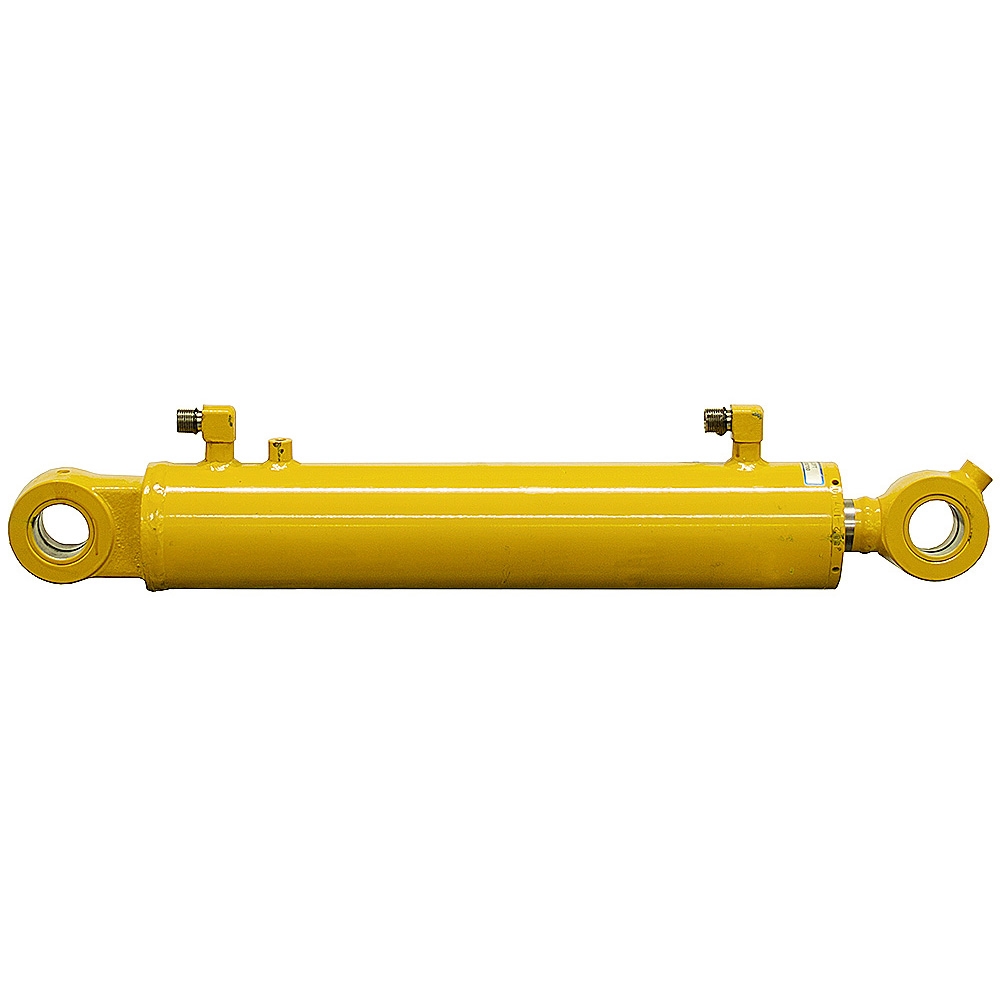

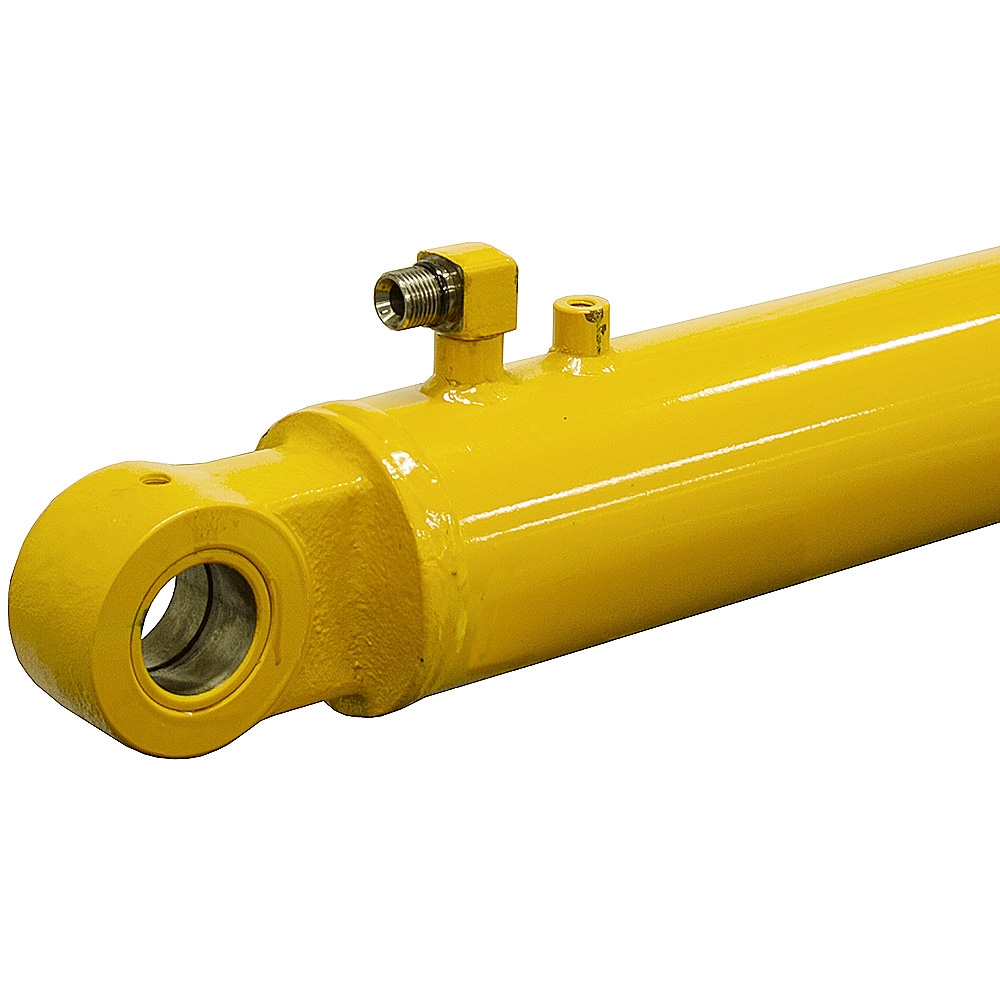

3.5x14.25x1.77 (45mm) DA Hydraulic Cylinder

Item Number: 9-10302

Price: $179.95
TOP
Back to top

3.5x14.25x1.77 (45mm) DA Hydraulic Cylinder

  • 3.5x14.25x1.77 (45mm) DA Hydraulic Cylinder
  • 3.5x14.25x1.77 (45mm) DA Hydraulic Cylinder - Alternate 1
  • 3.5x14.25x1.77 (45mm) DA Hydraulic Cylinder - Alternate 2

3.5x14.25x1.77 (45mm) DA Hydraulic Cylinder

item number: 9-10302 PRICE: $179.95 Out of Stock - No Longer Available
Calculate Shipping for Item 9-10302
3.5x14.25x1.77 (45mm) DA Hydraulic Cylinder
Item Number: 9-10302
Price: $179.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION
3.5" x 14.25" x 1.77" (45mm) DA HYDRAULIC CYLINDER
Unused, old inventory. Welded cylinder with thread-in gland cap. H80 lift cylinder. Both ports face base end.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3-1/2" x 14-1/4"
  • Barrel Thickness 5/16"
  • Pressure 3000 PSI max.
  • Rod Dia. 1.77" (45mm)
  • Ports 1/2" BSPP Male
  • Retracted Length 28"
  • Shpg. 63 lbs.
END MOUNTINGS
  • Rod End Tang
  • Max Thickness 2"
  • Pin Center to Tang End 1.77" (45mm)
  • Pin Hole 1.77" (45mm)
  • Base End Tang
  • Max Thickness 2"
  • Pin Center to Tang End 1.77" (45mm)
  • Pin Hole 1.77" (45mm)
