Description
DESCRIPTION

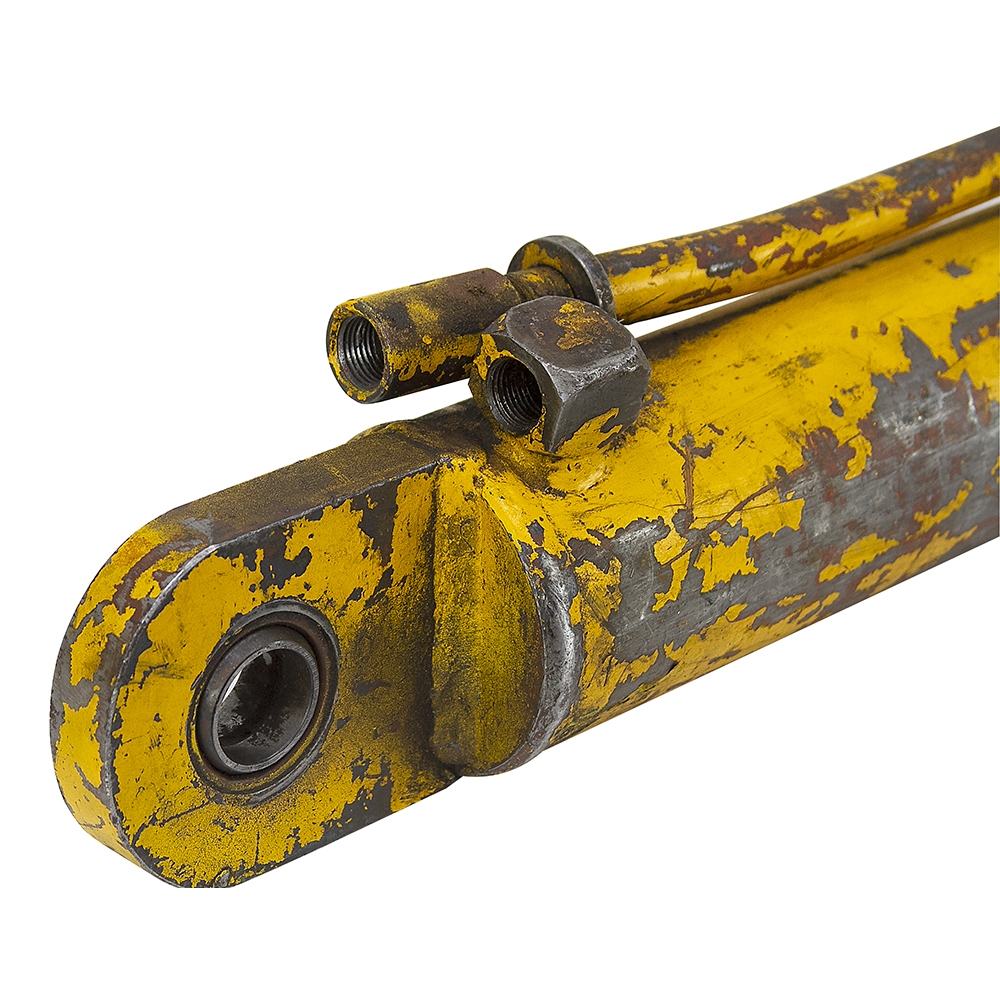

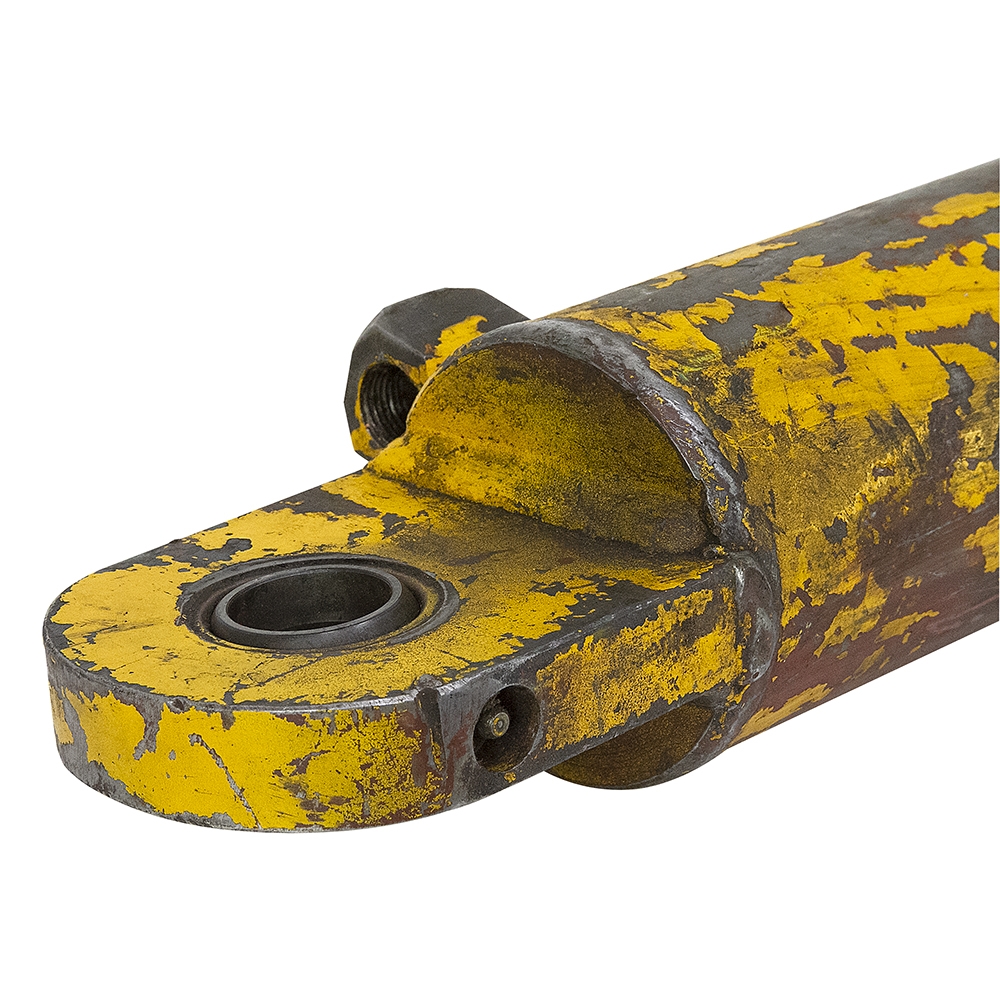

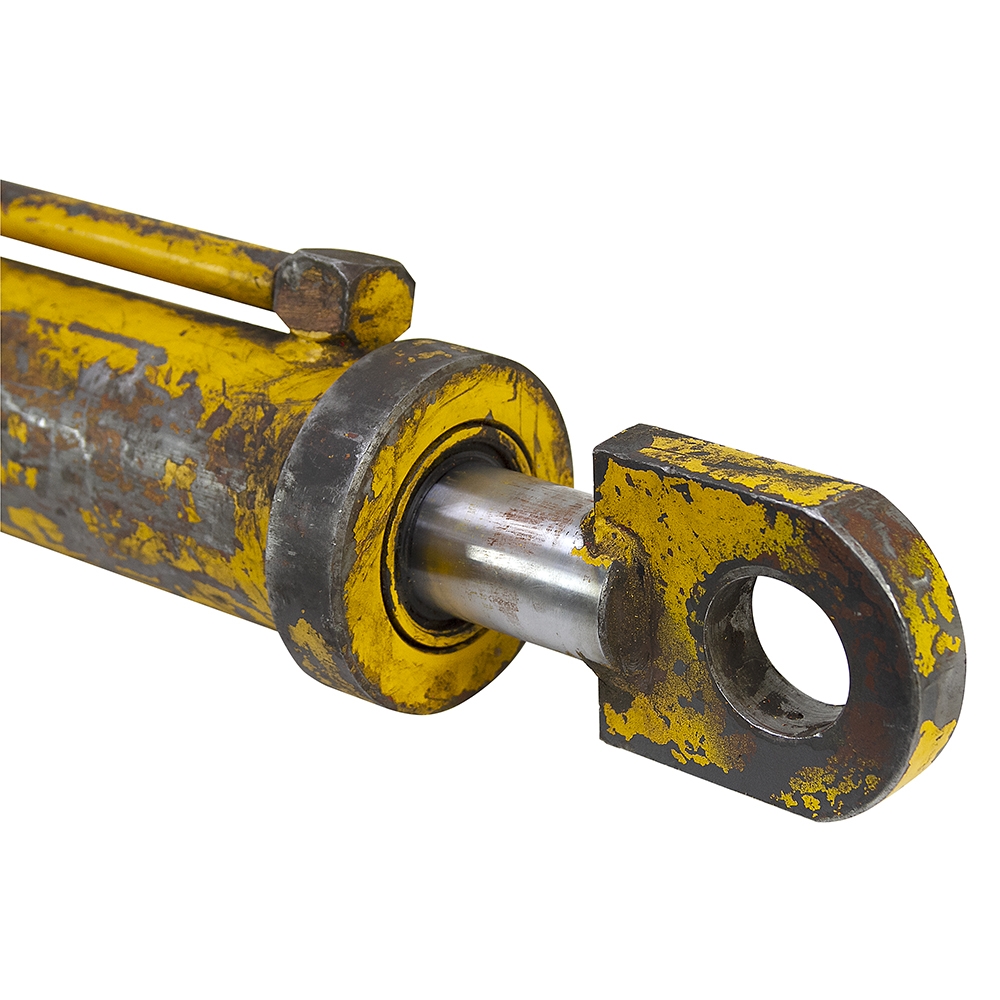

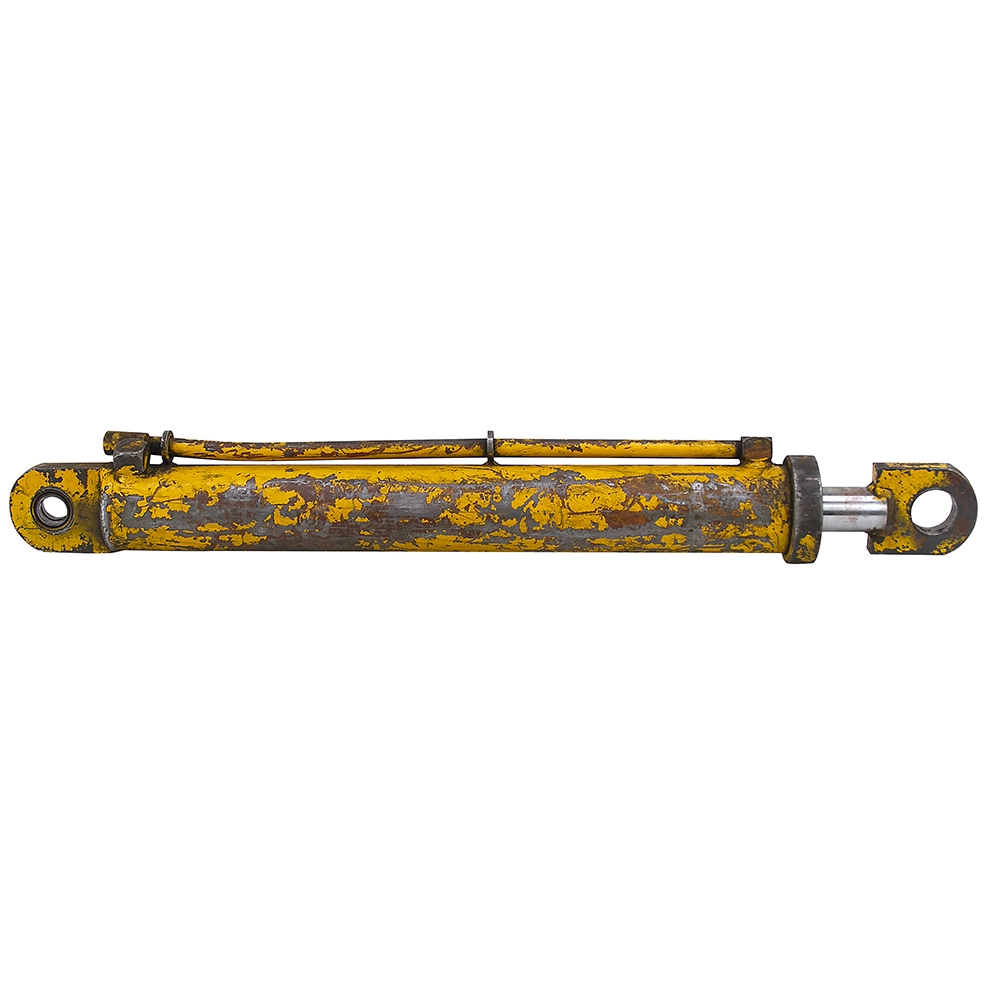

3.5" x 9.25" x 2" DA HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3.5" x 9.25"
  • Barrel Thickness 0.179"
  • Gland Retainer Externally threaded gland cap
  • Pressure 3000 PSI max.
  • Rod Dia. 2"
  • Ports 1/2" NPT
  • Retracted Length 41.625"
  • Shpg. 72 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 1"
  • Pin-Center-To-Tang-End 2"
  • Pin Hole 2"
  • Base End Swivel Eye
  • Thickness, Max 1"
  • Pin-Center-To-Tang-End 2"
  • Thru-hole Width 1.08"
  • Pin Hole 1-1/4"
