Description

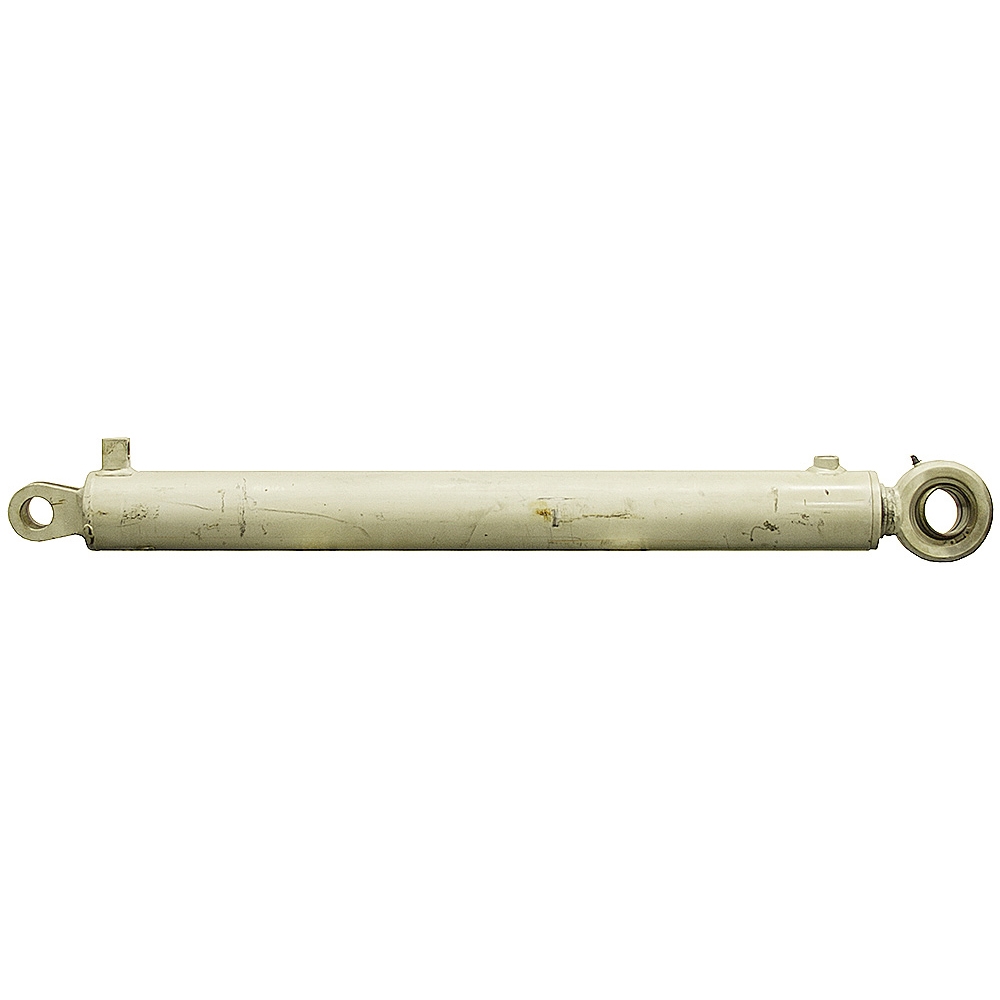

3" x 29.5" x 2" DA HYDRAULIC CYLINDER
Unused, old inventory. McNeilus model# AA221265 welded cylinder with thread-in gland cap. "RMT 1227387 0404 E12798" stamped into cylinder barrel.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3" x 29-1/2"
  • Barrel Thickness 1/4"
  • Pressure 3000 PSI max.
  • Rod Dia. 2"
  • Ports SAE 8
  • Retracted Length 39"
  • Shpg. 68 lbs.
END MOUNTINGS
  • Rod End Tang w/ Swivel Eye
  • Max Thickness 40mm (1.575")
  • Pin Center to Tang End 56.5mm (2.224")
  • Pin Hole 50mm (1.968")
  • Base End Clevis
  • Outside Width 55mm (2.167")
  • Inside Width 30mm (1.175")
  • Throat Depth 85mm (3.343")
  • Pin Hole 35.5mm (1.398")
