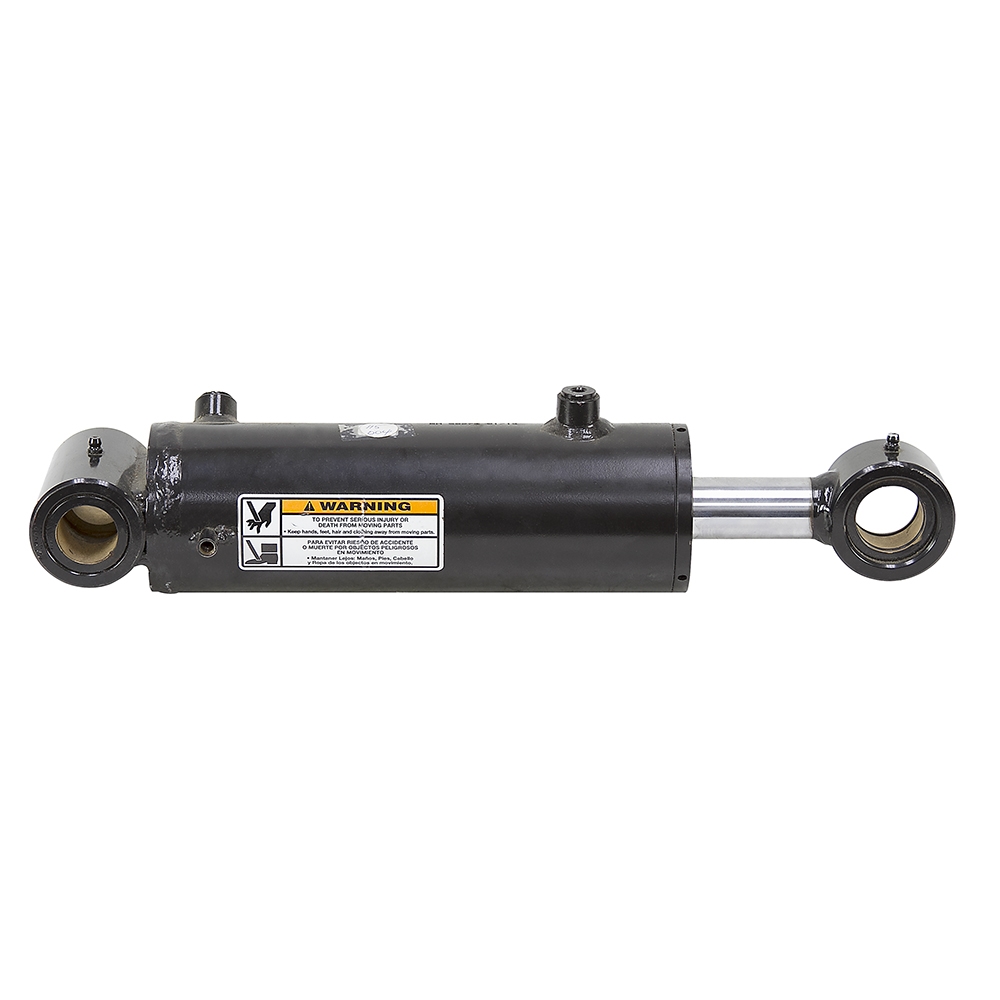

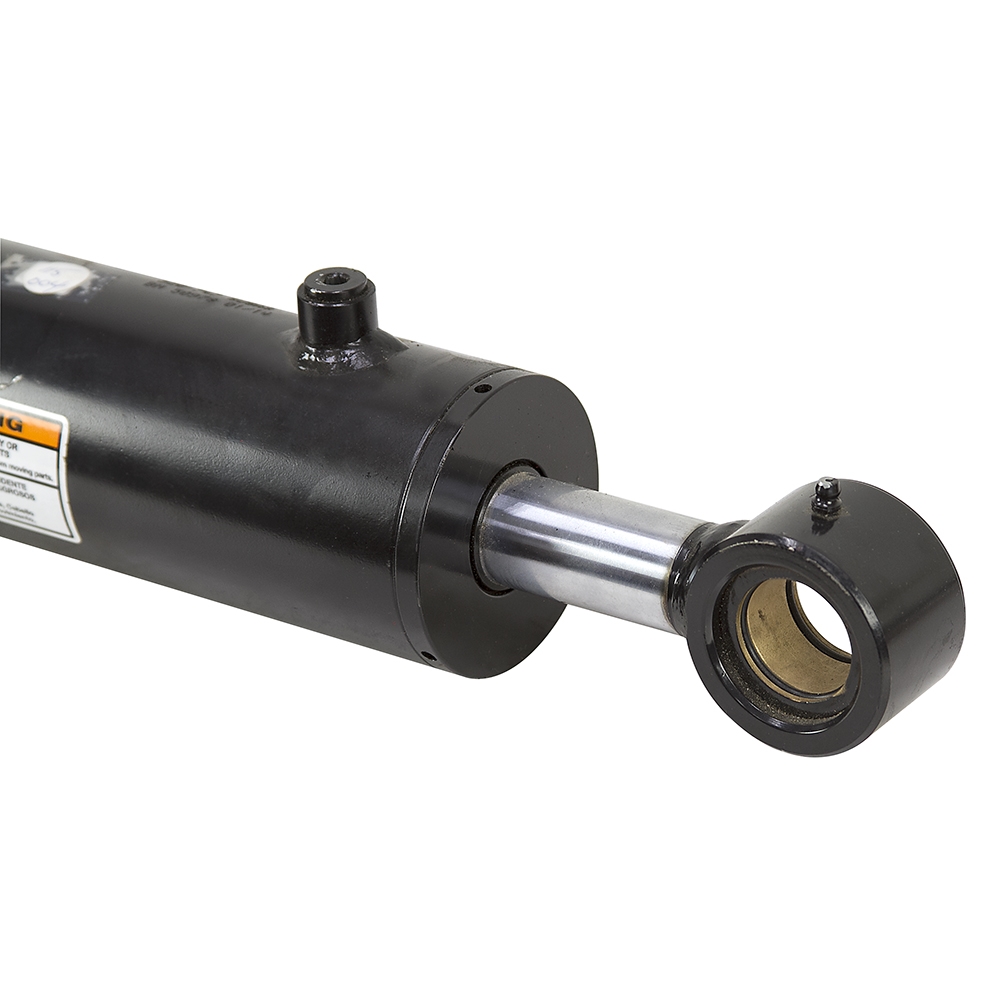

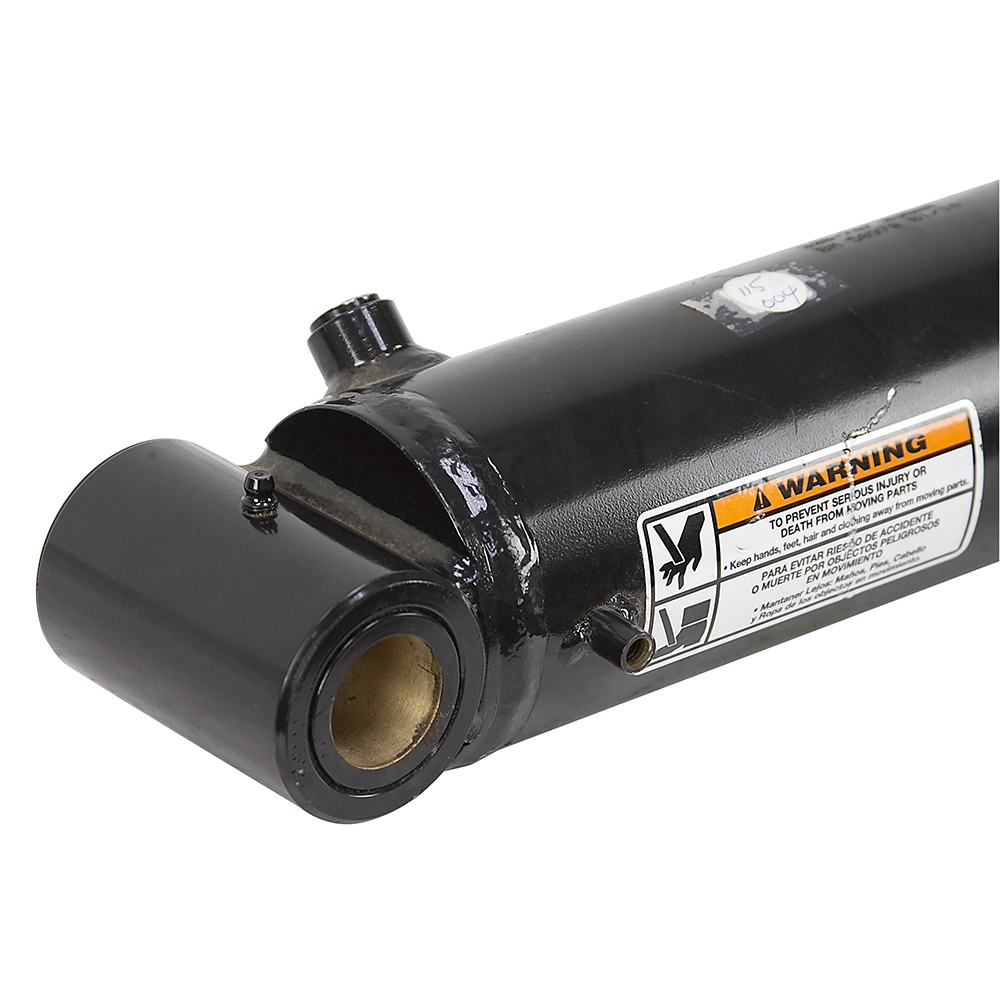

3x4.75x1.25 DA Hydraulic Cylinder

Item Number: 9-115004

Price: $79.95
TOP
Back to top

3x4.75x1.25 DA Hydraulic Cylinder

  • 3x4.75x1.25 DA Hydraulic Cylinder
  • 3x4.75x1.25 DA Hydraulic Cylinder - Alternate 1
  • 3x4.75x1.25 DA Hydraulic Cylinder - Alternate 2

3x4.75x1.25 DA Hydraulic Cylinder

item number: 9-115004 PRICE: $79.95 Out of Stock - No Longer Available
Calculate Shipping for Item 9-115004
3x4.75x1.25 DA Hydraulic Cylinder
Item Number: 9-115004
Price: $79.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION
3" x 4.75" x 1.25" DA HYD CYL
New. Double acting hydraulic cylinder. One offset internally threaded port 5/8-24 - two offset bracket tabs

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3" x 4.75"
  • Barrel Thickness 0.25"
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 1.25"
  • Ports SAE 6
  • Retracted Length 15.75"
  • Shpg. 24 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2.5"
  • Width 1.64"
  • Pin Hole 1-3/8"
  • Base End Cross-Tube
  • O.D. 2.25"
  • Width 3.50"
  • Pin Hole 1-3/16"
