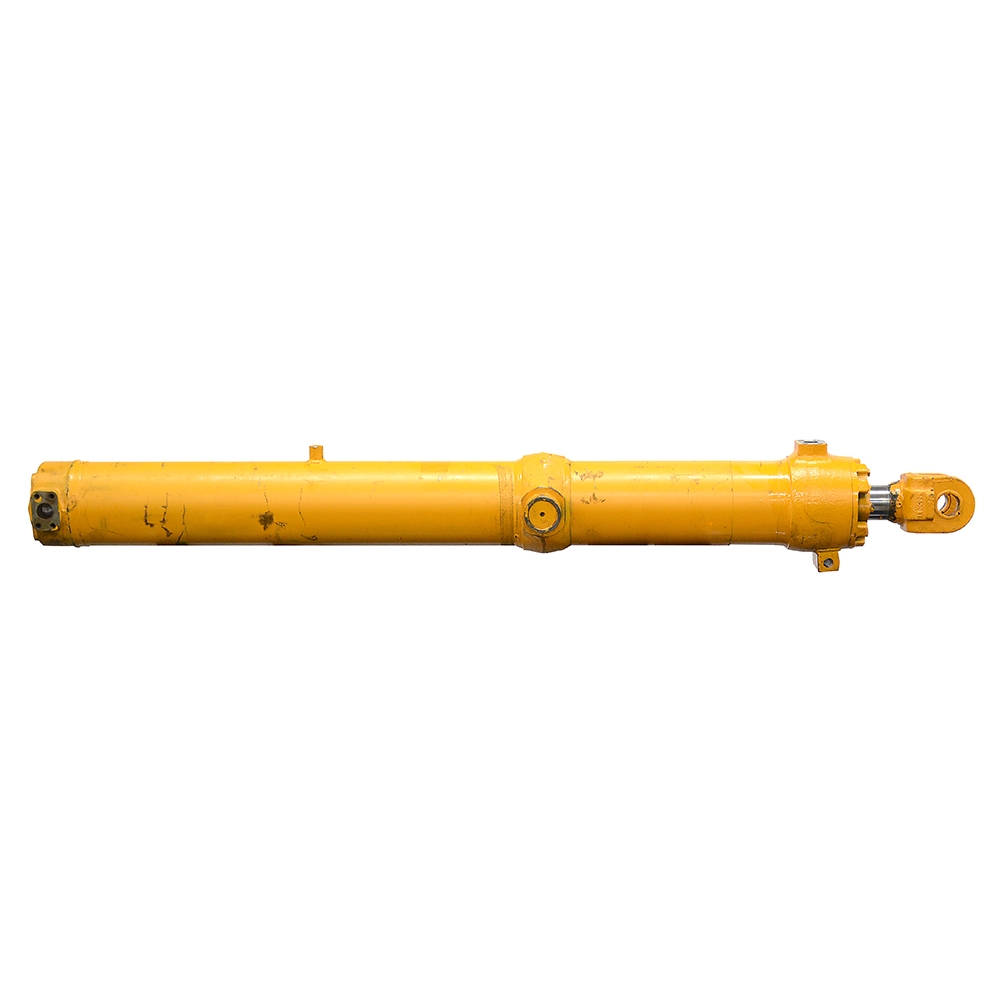

5.5x48x2.5 Double Acting Hydraulic Cylinder 73062693

5.5" x 48" x 2.5" DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Cylinder requires a base end manifold in order to function. Base for manifold has two, 1-1/8 ports with four, 5/8"-18 tapped holes on 3-1/4" x 3-1/2" centers. Model# 73062693

SPECIFICATIONS
Double Acting Bore x Stroke 5.5 x 48 Barrel Thickness 0.25" Gland Retainer Threaded In Gland w/ Bolt on Wiper Pressure 3000 PSI max. Rod Dia. 2.5"	Ports 4 Bolt 1-1/4" Code 61 Flange Size 16 Retracted Length 27.75" Shpg. 281 lbs.

END MOUNTINGS
Rod End Clevis Outside Width 5.395" Inside Width 3.150" Throat Depth 3.5" Pin Hole 1-1/2"	Base End Male Trunnion Pin Outside/Inside Width 11" / 8" Pin-Center-To-Rod Pin Center 27.75" Pin Center To Base End 35.75" Pin Diamter 2.5"
