Hydraulink Category 1 Toplink

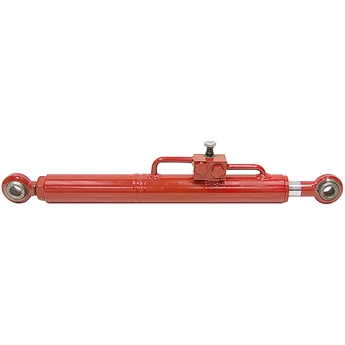

HYDRAULINK TOP LINK CYLINDER
Brand new, Hydraulink air over hydraulic top link cylinder. For Category 1 tractors up to 45 HP. Fully self contained, no tractor hydraulics required. Easy to adjust by simply loosening needle valve, moving into postion and retightening. Also acts as a shock absorber for much smoother operation with attachments, lessening operator fatigue. Swivel eye ends. Threaded adjustment at base end.

SPECIFICATIONS

• Weight Capacity 5300 lbs
• Bore 1-1/2"
• Hydraulic Stroke 6"
• Mechanical Adjustment 2-3/4"
• Total Adjustment Range 8-3/4"
• Pin Holes 3/4" dia.
• Retracted Length 19-1/4" to 28"
• Overall size 21" x 1-1/2" x 4"
• Shpg. 13 lbs.
