6.3 cu in White Hydraulic Motor

Item Number: 9-3176-F

Price: $94.95
TOP
Back to top

6.3 cu in White Hydraulic Motor

6.3 cu in White Hydraulic Motor

item number: 9-3176-F PRICE: $94.95 Out of Stock - No Longer Available
Calculate Shipping for Item 9-3176-F
6.3 cu in White Hydraulic Motor
Item Number: 9-3176-F
Price: $94.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description

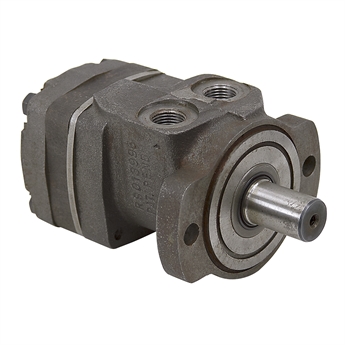

6.3 cu in WHITE DRIVE PRODUCTS RS013996 HYDRAULIC MOTOR
New, WHITE DRIVE PRODUCTS hydraulic motor. Roller stator motor design increases performance in demanding light-duty applications. A heavy-duty drive link and pressure-fed bearing surface increase longevity of motor.

SPECIFICATIONS
  • Brand White Drive Products
  • Model RS013996
  • Family RS
  • Displacement 6.3 cu. in. / rev.
  • Motor Type Roller Stator
  • Rotation Reversible
  • Pressure:
       1750 PSI cont.
       2000 PSI int.
  • Torque:
       1500 in-lbs. cont.
       1725 in-lbs. int.
  • Speed:
       510 RPM cont.
       570 RPM int.
  • Flow:
       14 GPM cont.
       16 GPM int.
  • Mount Two-bolt SAE A
  • Shaft 1" dia. woodruff keyed
  • Ports 1/2" NPT Side Ports
  • Case Drain None
  • Size 5-5/8" x 5-1/8" x 3-3/4"
  • Shpg. 17 lbs.
