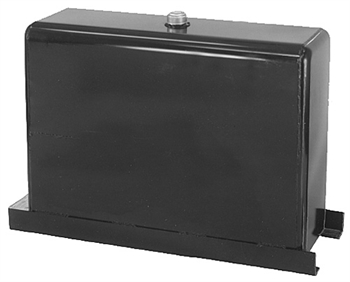

70 Gallon Hydraulic Buyers Reservoir Buyers Products UR70S

UPRIGHT STEEL HYDRAULIC RESERVOIR

Brand new, BUYERS model UR70S hydraulic reservoir. Constructed of 12 gauge black powder coated steel. 3/4" NPT magnetic drain plug. Chrome breather cap with filler basket. Oil level gauge with temperature indicator. Internally baffled between suction and return ports. Suction,return and drain ports on bottom of the tank. Welded mounting brackets can be drilled custom installation. Mounting kit included. Mounting brackets must be drilled to attach mounting kit. Four "L" shaped brackets elevate tank off mounting surface. Mounting kit includes hardware to prevent twisting of the mounting frame from damaging the reservoir.

SPECIFICATIONS

• Brand Buyers Products
• Model Number UR70S
• Nominal Oil Capacity 70 Gallon
• Usable Oil Capacity 67.5 Gallon
• Ports:
     Suction 2" NPT x one
     Return 1-1/4" NPT x one
     Drain 3/4" NPT x one
• Mount
     Welded mounting angles w/ Mounting Kit
• Mounting Holes None
• Size 49-1/4" X 14-3/4" X 25-7/16"
• Shpg. 227 lbs.
