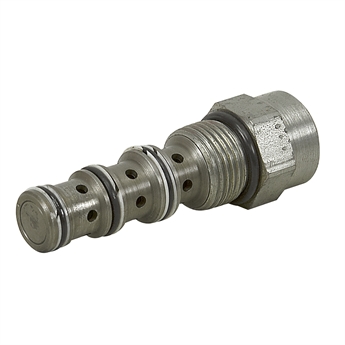

Hydraforce Directional Control Valve Cartridge Valve PD10-41-0-N-60

HYDRAFORCE DIRECTIONAL CONTROL VALVE PD10-41-0-N-60

New, Hydraforce. A screw-in, cartridge-style, pilot-operated, spool-type, hydraulic directional valve for three-way circuits requiring remote pilot actuation.
In neutral (unpiloted), the PD10-41 allows flow from 3 to 4 while blocking at 2. On remote pilot signal at 1, the valve shifts to allow flow between 3 and 2 while blocking at 4. Since 4 is common to the spring chamber, pressure on 4 will directly (1:1) affect the pilot pressure required, and must always be added to the bias spring value.

SPECIFICATIONS

• Brand HydraForce
• Model PD10-41-0-N-60
• Type Piloted, Three Way, Spool Type, Internally Vented Directional Control Valve
• Pressure Rating 3500 PSI max.
• Pressure Setting 60 PSI bias spring
• Flow 12 GPM max.
• Fits into VC10-4 Cavity
• Features Cartridge Only
• Overall Size 3-5/8" x 1-1/8" dia.
• Shpg. 1/2 lb.
