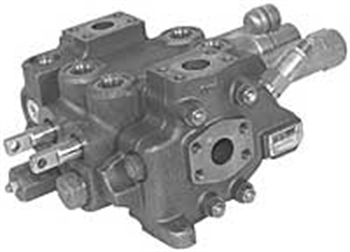

2 Spool 30 GPM JI Case OC PBYD Valve

2 SPOOL LOADER VALVE

New, J.I CASE part number 1343697C2 two-spool loader valve. First spool double-acting for bucket with 12 VDC electromagnet hold in the "OUT" position. Built-in priority valve on inlet section for a steering circuit with load sensing. Second spool double acting with float for lift. Open center power beyond. Spring centering spools, detented float. No handles.

SPECIFICATIONS

• 30 GPM
• Adj. main relief set 2600 PSI
• 1st spool port reliefs set 2750 PSI
• Priority flow 4 GPM
• IN/OUT power beyond port 1"4-bolt flange
• Work Ports SAE 10
• Load sense port SAE 6
• 14-1/2"x9-1/2"x5-3/4"
• Shpg. 62 lbs.
