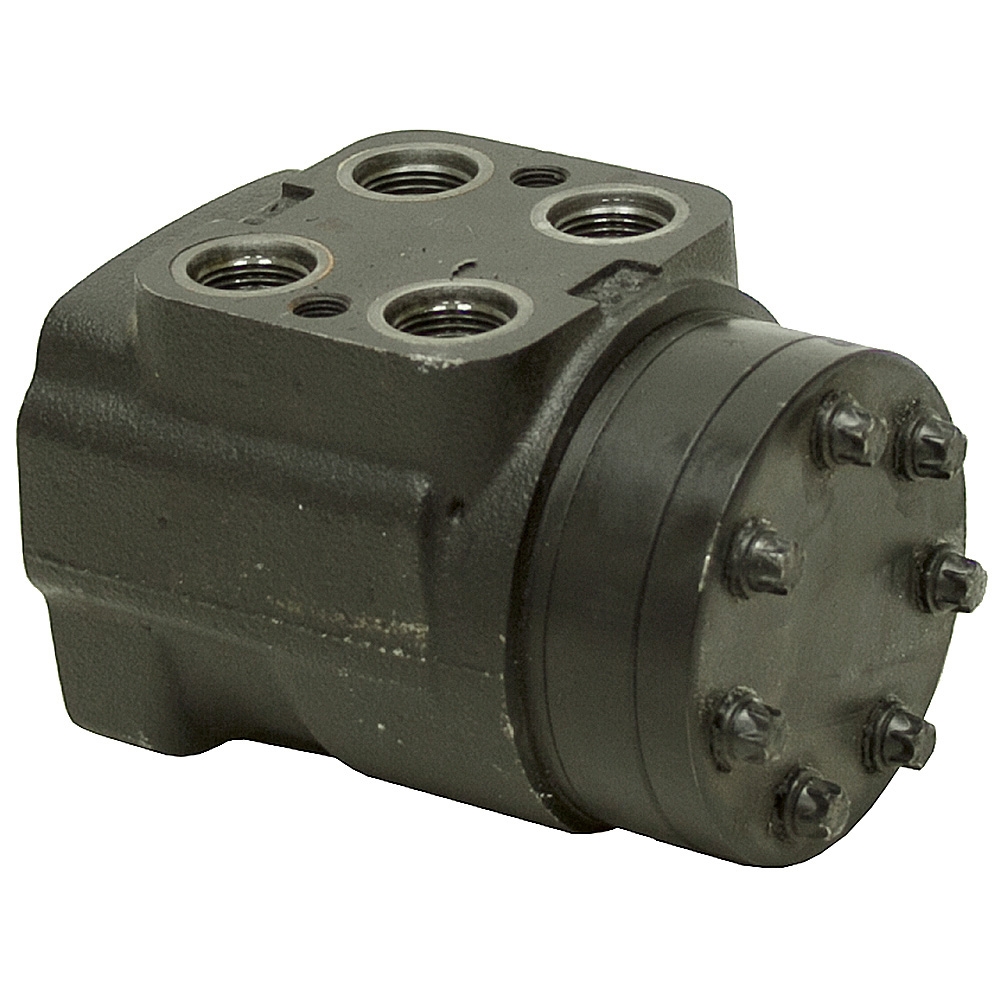

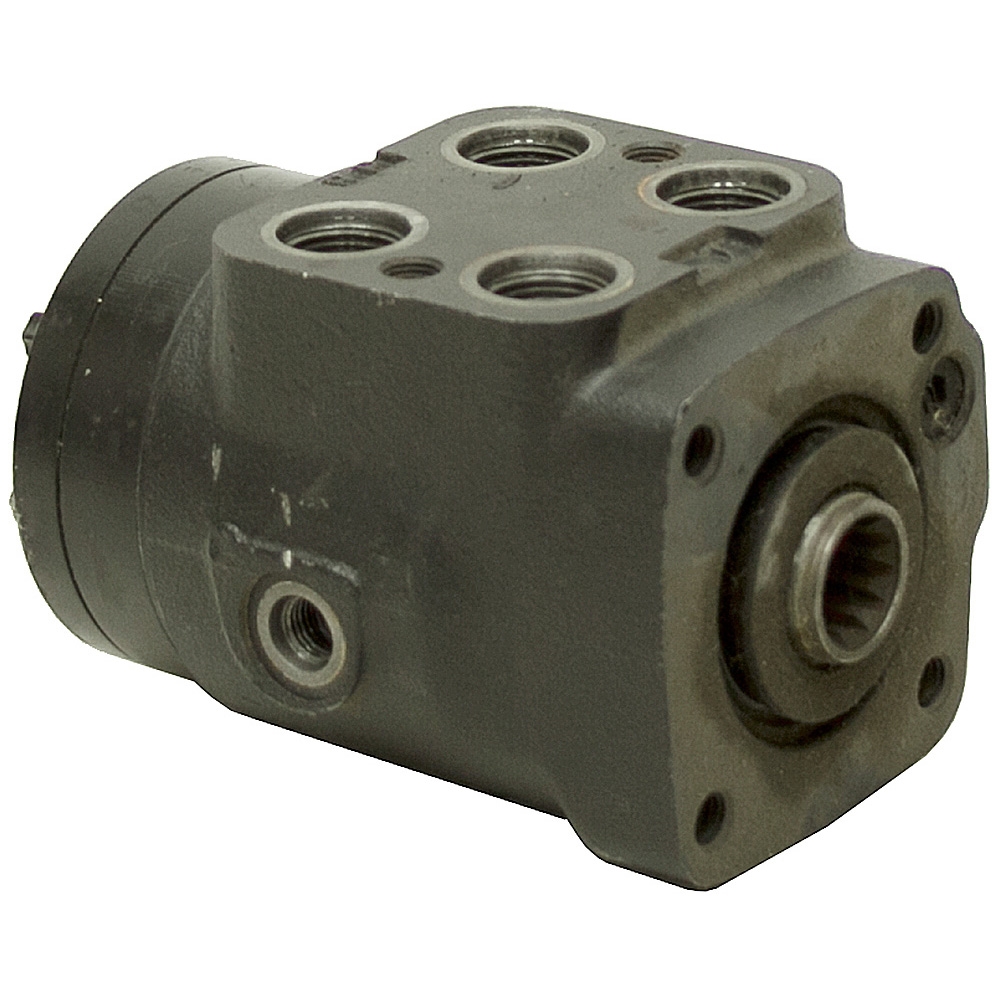

213-4045 Load Sense Steering Valve

7.33 CU.IN. LOAD SENSING CHARLYNN STEERING VALVE
New power steering valve from Char-Lynn. For use with standard 12 tooth splined steering columns. 2,500 PSI max pressure. Load sensing. Manual steering check valve. Four 3/8"-16 mounting holes on 3.25" B.C.

Non load reaction - Steering cylinder ports are blocked in neutral, locking the axle position when the operator releases the steering wheel.

SPECIFICATIONS

• Model 213-4045-002
• Displacement 7.33 Cu-In/rev
• Rated input flow 6 GPM
• Load circuit Non load reaction
• Work Ports SAE 8
• Load Sense Port SAE 4
• Size 5-1/4" x 3-3/8" x 3-3/4"
• Shpg. 13 lbs.
