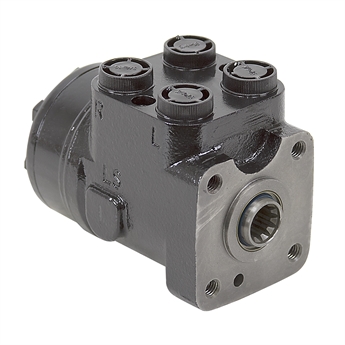

WHITE DRIVE PRODUCTS HYDRAULIC POWER STEERING VALVE New, WHITE DRIVE PRODUCTS model# S10160AARAAAAAAAAAA steering unit. Provides steering torque and continuous vehicle wheel control with little operator input torque. Directly interchangeable with most competitive steering unit models on the market.
Non-load reaction - Steering cylinder ports are blocked in neutral, locking the axle position when the operator releases the steering wheel.
SPECIFICATIONS
- Model S10160AARAAAAAAAAAA
- Displacement 9.8 cu. in. / rev.
- Rated input flow 4-11 GPM
- Pressure 3045 PSI max.
- Back Pressure 580 PSI max.
- Power Steering Torque 24.8 in-lbs. max.
- Manual Steering Torque 1203.7 in-lbs. max.
- Load circuit Open center, non-load reaction
- Filtration ISO 18-15 (NAS 9)
- Ports SAE 8
- Mount Four 3/8"-16 tapped holes on 3-1/4" B.C., 1-3/4" pilot
- Valve Mount Two 3/8"-24 tapped holes on 2-3/8" centers
- Shaft 12T spline, 0.612" deep (no column)
- Overall size 5-1/2" x 4" x 3-1/2"
- Shpg. 15 lbs.
