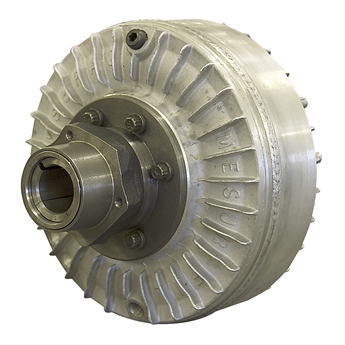

Wichita Clutch/Dana Corporation HSD Size 9.4 Mesur-Fil Fluid Coupling

DANA CORPORATION/WICHITA CLUTCH FLUID COUPLING
New, DANA CORPORATION/WICHITA CLUTCH HSD size 9.4 Mesur-Fil fluid coupling. Built to deliver high torque for belt-driven, parallel shaft applications. Allows shock-free acceleration of large inertia loads. Mounts onto motor shaft and has power output through sheave (not included). Use with QD sheaves made for SK hubs. Furnished dry. Mount horizontally or vertically.

SPECIFICATIONS

• Manufacturer Wichita Clutch (Dana Corporation)
• Model HSD Size 9.4 Mesur-Fil
• HP Ratings 5 HP @ 1200 RPM
•                      15 HP @ 1800 RPM

• Torque 120 ft-lbs. cont.
• Torque 350 ft-lbs. max.
• Input Speed 2,600 RPM max.
• Sheave Hub Mount Three 5/16"-18 tapped holes on 3-5/16" B.C.
• Motor Mount Input Shaft Fits 1-5/8" keyed shaft w/ 3/8" keyway
• Overall O.D. 10-1/4"
• Overall Length 9-3/8"
• Shpg. 40 lbs.
