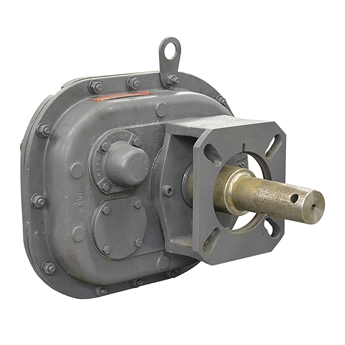

9.33:1 INLINE GEAR REDUCEROld, unused inventory,Browning model 215SC09-207D. Made in the USA. Ideal for operating augers, conveyors, industrial machinery and other heavy duty applications. Cast iron housing with precision helical gearing. Oil bath lubrication. Tapered roller bearings. Direct or belt drive applications.
SPECIFICATIONS- Ratio 9.33:1
- Input Power 50.7 HP max.
- Input Speed 1750 RPM max.
- Output Speed 188 RPM max.
- Output Centerline Height 7"
- Input Shaft 1-7/16" x 5" w/ 3/8" keyway
- Output Type Inline
- Output Shaft 3-3/8" stepped to 2-7/16" x 6-3/4" long w/ two 25/32" crossholes. Overall length 11".
- Rotation CW:CCW
- Mount 5" x 5" 3/4" holes slotted radially outward 2" on output
- Size 20" x 17" x 16"
- Shpg. 270 lbs.
