Description

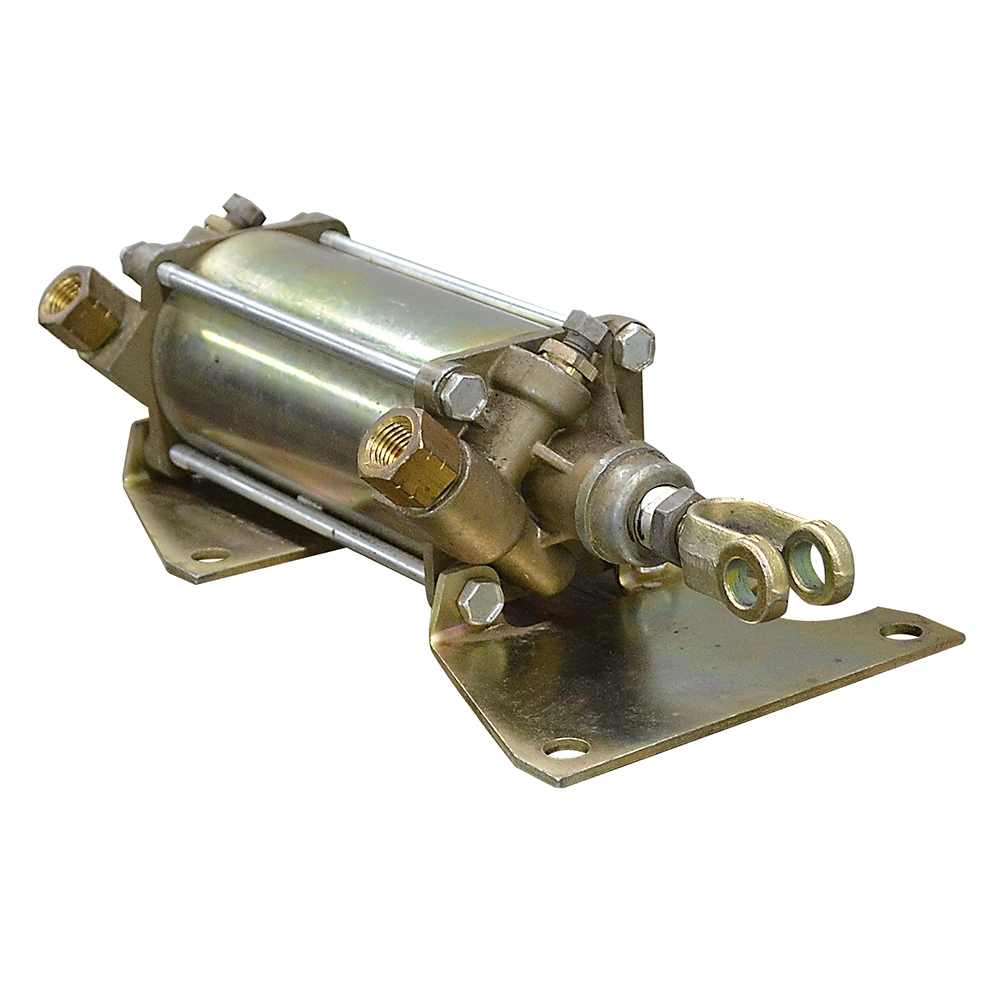

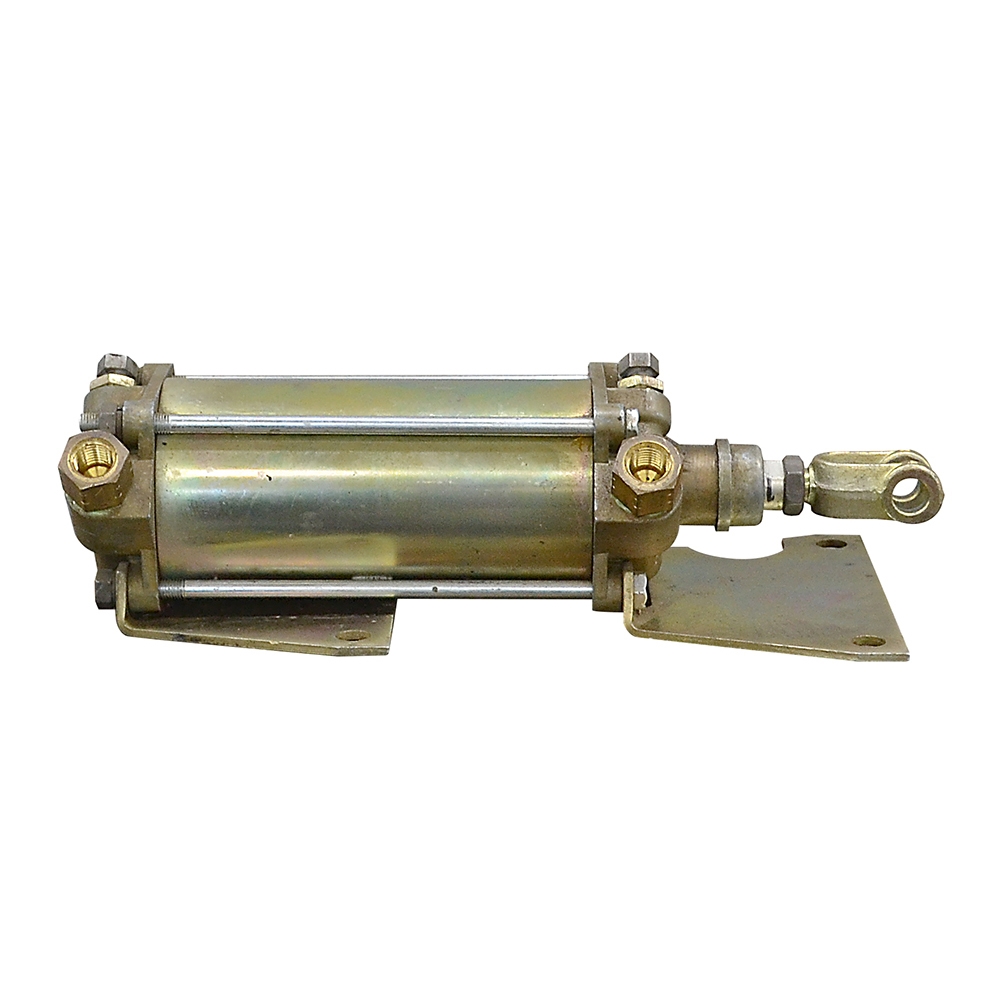

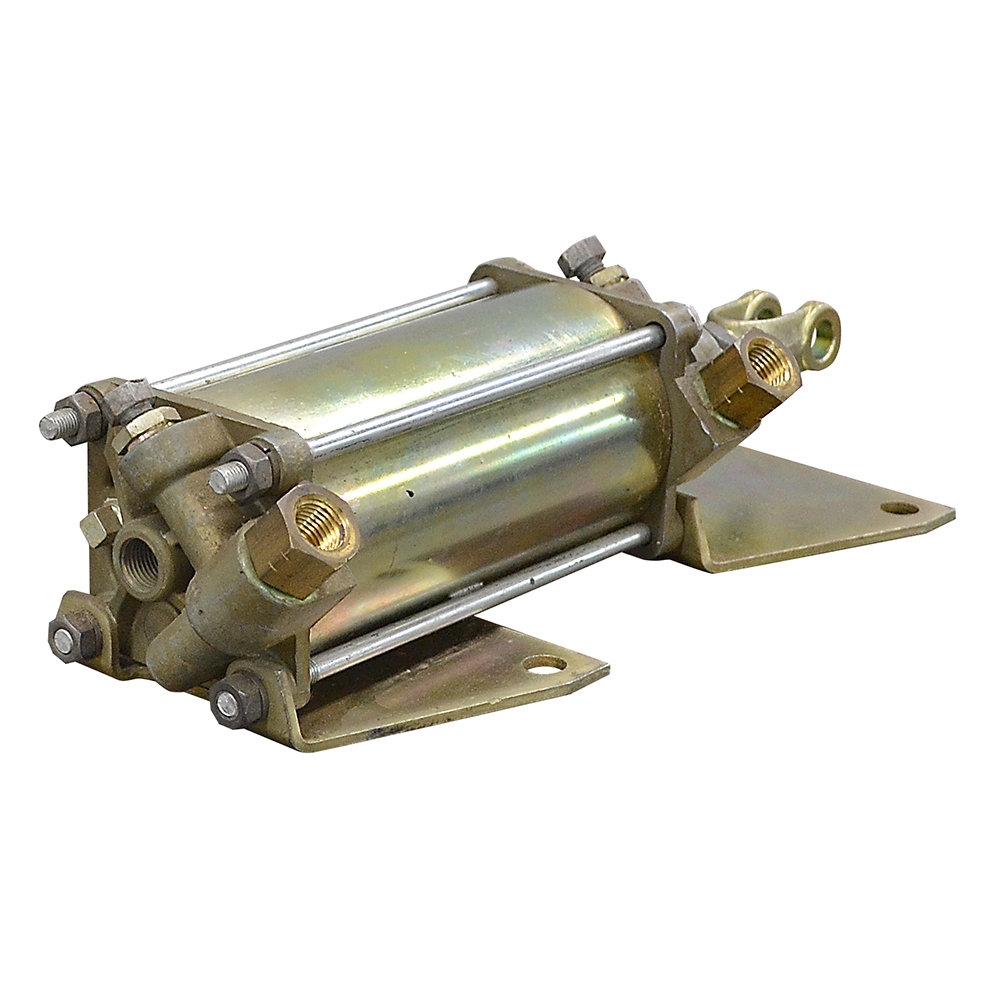

2.5" x 3" x 0.625" DA AIR CYL
Unused old inventory. Double acting pneumatic cylinder. Cylinder has a adjustable flow control valve.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2.5" x 3"
  • Barrel Thickness 0.067"
  • Gland Retainer Tie-Rod
  • Pressure 250 PSI
  • Rod Dia. 0.625"
  • Rod Thickness 0.122"
  • Ports 3/8" NPT
  • Retracted Length 10"
  • Gland Face to Rod Pin Center 2.5"
  • Shpg. 8 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 1"
  • Inside Width 0.515"
  • Throat Depth 1.4"
  • Pin Hole 7/16"
  • Base End Tapped
  • Thread Size-Pitch 1/2"-20 TPI
  • Thread Depth 0.88"

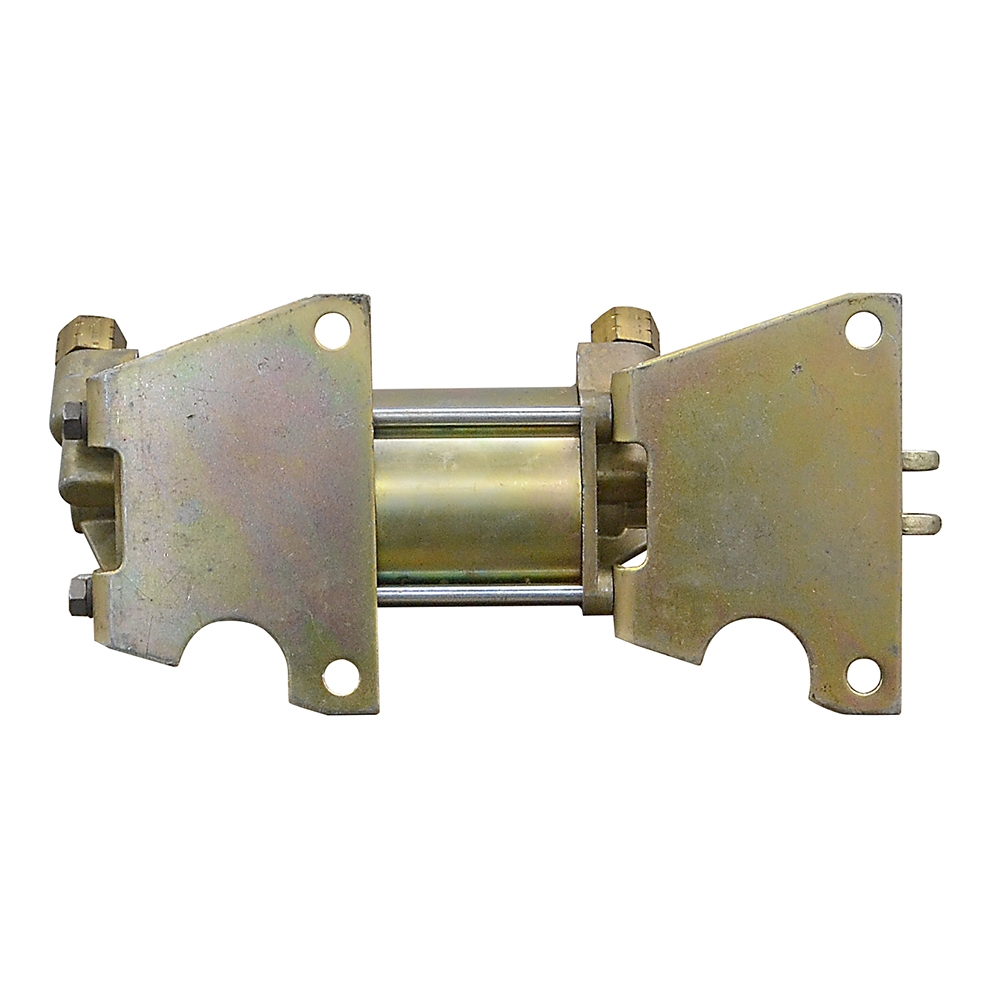

  • Accessory Mount Four 0.41" bolt holes on 6.04" x 4" centers
