20 Gallon Vertical Wheel Style Air Tank

Item Number: 4-1915

Price: $149.95
TOP
Back to top

20 Gallon Vertical Wheel Style Air Tank

20 Gallon Vertical Wheel Style Air Tank

item number: 4-1915 PRICE: $149.95 38 In Stock Surplus Item


Must ship via Truck Freight
Please contact us for a quote
Calculate Shipping for Item 4-1915
20 Gallon Vertical Wheel Style Air Tank
Item Number: 4-1915
Price: $149.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 109 of our current catalog
Description

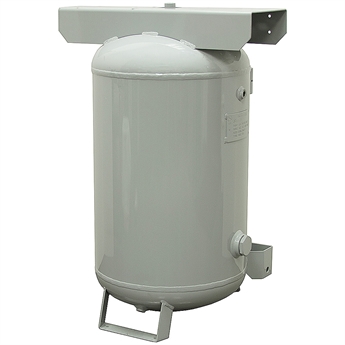

20 GALLON VERITCAL ASME AIR TANK

New, ASME steel air tank. Has brackets for adding axle, wheels and handle (not included) for portable use. Top platform has predrilled holes for motor and compressor.

SPECIFICATIONS
  • Capacity 20 Gallon
  • Pressure 150 PSI
  • Ports:
  •    1/2" NPT on top
       1/4" NPT on each side
       Inspection 1-1/2" each side
  • Size 22" x 16" x 32-1/2"
  • Actual wt. 87 lbs.
  • Shpg. 120 lbs.
Warranty
90 Day Surplus Center WarrantyView Warranty
Warranty Information

Products we regularly stock that are purchased directly from the manufacturer are covered by that manufacturers warranty.


We warrant all other products, only to the original purchaser, to be free from defects in materials and workmanship for a period of 90 days from date of shipment.


Because we have no assurance of the purposes for which any of the items herein will or may be used, no warranty is given as to the fitness of the item for any particular purpose. You have the responsibility for determining the suitability of items herein for your particular use. We shall not be liable for incidental or consequential damages.


NOTE! Warranties do not cover bent hydraulic cylinder shafts.


We shall, at our option, repair or replace any items deemed by us to be defective under this warranty. Items returned by the purchaser for warranty adjustment must be handled as stated in our return policy. Proof of, and date of purchase will be required.


Remedies under this warranty shall be limited to the original purchase price of the claimed defective item. (Some states do not allow limitations on implied warranties, incidental or consequential damages, thus, some of the limitations or exclusions referred to above may not apply to you.)


In no event shall we be liable for any damages, or warrant any of our products which are made defective as a result of damage in shipment, user's abuse, neglect or improper operation.



Ask A Question
Submit a question for this product

Showing Questions of 8

Hi, Do you guys ship to Montreal Quebec too? thank you

A: We do ship to Canada. Please contact our Customer Service department and they can provide you with an international quote.

Does this tank do a half inch out? Or do I need to use an adapter set on the plug?

A: That could be done, yes. The only 1/2" port is on the top for the entry.

Is this tank rated for vacuum pressure? If so, how much?

A: The data plate makes no mention of vacuum rating.

I recently purchased one of these tanks and am having trouble interpreting the nameplate information. You advertise it as an A.S.M.E.air tank but the nameplate does not list the material thickness or the maximum allowable working pressure in P.S.I. only a number 1.05 and no units.Your catalog lists it at 150 P.S.I. but this is not listed on the nameplate and nowhere is there any reference to A.S.M.E. certification. I need more information before I can pressurize this tank to 150 P.S.I. Thank you.

A: The nameplate does not specifically state the material thickness. It does have an ASME certification stamp in the upper left corner of the data plate. The units are in MPa, (megapascal-MPA on the data tag) which converts to 152.3 psi. If you are uncomfortable with the tank, have not placed it into service, and are within the 30 day return policy, you may return it for a full product refund.

Is there a means of draining condensate?

A: There is a port in which a petcock could be installed on the tank, but it is not dead center at the bottom. The tank would have to be tilted slightly to completely drain. It is visible in the pictures.

what is the dimension of the top mounting plate?

A: The top plate is 22 1/4" x 8 7/8".

I am looking for the spacing dimensions of the compressor and motor mounts for air compressor tank, item #4-1915

A: It accepts a motor with a 56 frame and compressor pump that has a 6-7/8" x 3-5/8" mounting pattern.

I notice tank does not come with wheels/casters or handle. What is the part number for those items, so that tank assembly is 'complete'?

A: Since we purchased these as surplus merchandise the other parts are not available. The frame is drilled to accept a 5/8" dia. axle and wheels should be 7" dia. so that the tank sits on it's stand rather than the wheels when upright. The tubing the handle slips into is 1" ID.
